Removing and installing belt latch

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
  1. 4 - Lap belt latch
  2. D - Bolt

    60 N.m (44 ft lb)

  3. E - Clip
  4. F - Spacer bushing
  5. G - Nut

    25 N.m (18 ft lb)

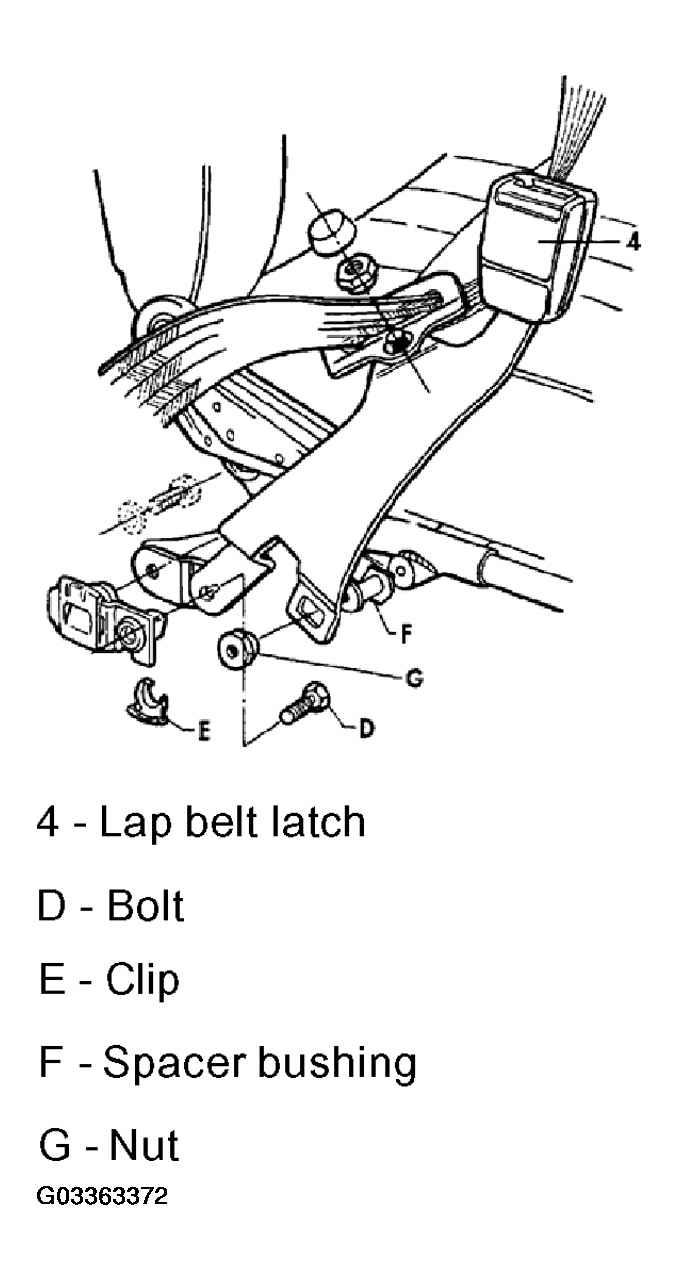

    6. Fig 1: Identifying Belt Latch
    G03363372
