Front seat belts, removing and installing (vehicles with airbag): Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Different procedures apply for airbag-equipped vehicles that are also equipped with emergency tensioning seat belt retractors:
- Refer to SAFETY PRECAUTIONS .
- 2-door, refer to FRONT SEAT BELTS, REMOVING AND INSTALLING (2-DOOR VEHICLES WITH AIRBAG AND PYROTECHNIC SEAT BELT TENSIONERS) .
- 4-door, refer to FRONT SEAT BELTS, REMOVING AND INSTALLING (4-DOOR VEHICLES WITH AIRBAG AND PYROTECHNIC SEAT BELT TENSIONER) .
NOTE:

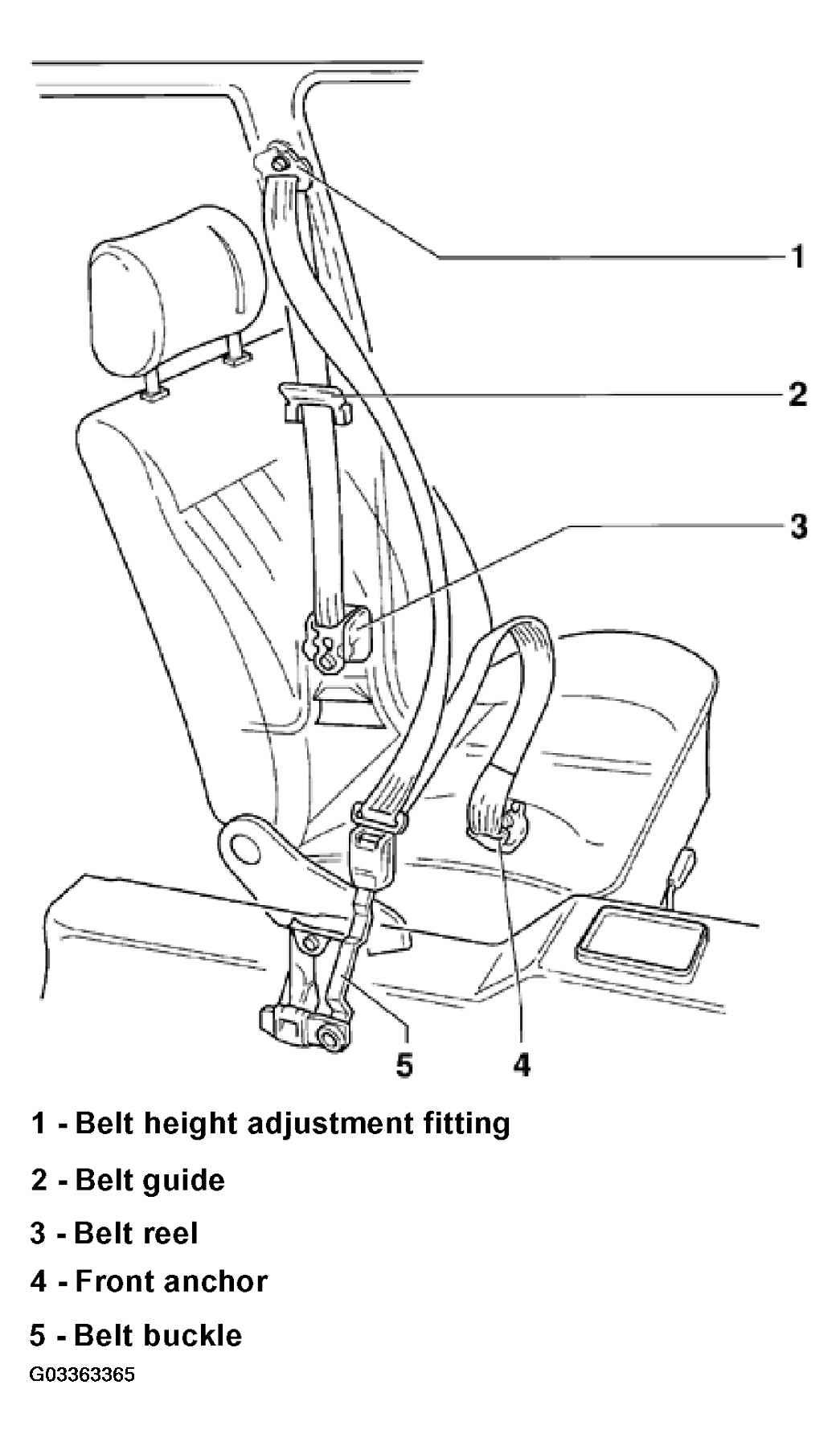

The following list refers to Fig 1
.
- - Belt height adjustment fitting
- Removing, refer to SEAT BELT HEIGHT ADJUSTMENT FITTINGS, REMOVING AND INSTALLING .
- - Belt guide
- Secured with two Phillips- head screws
- Tightening torque: 1.5 N.m (13 in. lb) (trim removed)
- Mounting position determined by retaining lugs
- Tightening torque (hex bolt): 40 N.m (30 ft lb)
- - Belt reel
- To remove belt reel, first remove trim at top and bottom of B-pillar, and remove sill panel trim
- - Front anchor
- Removing, 2-door, refer to Removing anchor rail (2-door) .
- Removing, 4-door, refer to Removing front anchor (4-door) .
- To remove, first remove sill panel
- - Belt buckle
- Removing and installing, refer to Removing and installing belt buckle .
CAUTION: Very Important! There are two different types of front anchor -4- depending on whether the vehicle is 2-door or 4-door.
