Front seat belts, removing and installing (2-door vehicles with airbag and pyrotechnic seat belt tensioners): Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Before starting any work on the seat belts or the seat belt tensioning system, refer to SAFETY PRECAUTIONS .
- Before starting any body disassembly, straightening or other body repair work, the belt tensioning units must be removed.
CAUTION:
After an accident in which one or both belt tensioners have been activated, both seat belts must be replaced (the belts will no longer retract).
NOTE:
4-door vehicles, refer to FRONT SEAT BELTS, REMOVING AND INSTALLING (4-DOOR VEHICLES WITH AIRBAG AND PYROTECHNIC SEAT BELT TENSIONER)
.
NOTE:

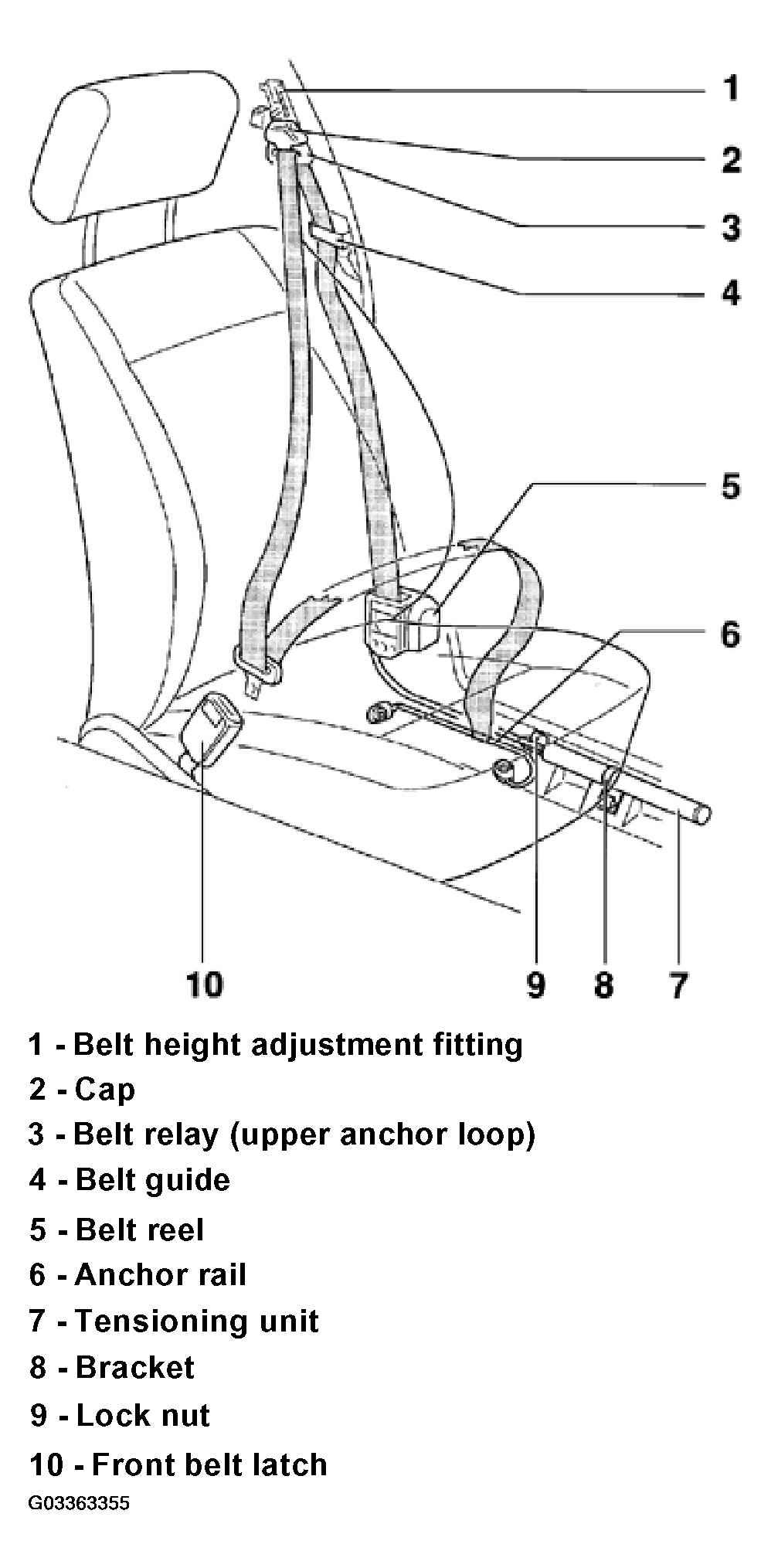

The following list refers to Fig 1
.
- - Belt height adjustment fitting
- - Cap
- Snapped on
- - Belt relay (upper anchor loop)
- - Belt guide
- Secured with two Phillips-head screws
- 1.5 N.m (13 in. lb)
- - Belt reel
- Removing, refer to FRONT BELT REEL WITH TENSIONING UNIT, REMOVING AND INSTALLING (2- DOOR) .
- Retaining lugs determine mounting position
- Tightening torque (hex bolt): 40 N.m (30 ft lb)
WARNING: ALWAYS follow the prescribed work sequence for removing or installing belt reel -5-, refer to FRONT BELT REEL WITH TENSIONING UNIT, REMOVING AND INSTALLING (2- DOOR) . - - Anchor rail
- Removing, refer to Removing anchor rail (2-door) .
- - Tensioning unit
- Removing, refer to FRONT BELT REEL WITH TENSIONING UNIT, REMOVING AND INSTALLING (2- DOOR) .
- Integral part of seat belt
- Loosening locking nut -9- makes tensioner inactive, tightening it will make tensioner operational again
- - Bracket
- - Lock nut
- Integral part of tensioning unit
- Tightening torque: 20 N.m (15 ft lb)
- - Front belt latch
- Removing, refer to Removing and installing belt latch .
