Front belt reel with tensioning unit, removing and installing (2- door): Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove side panel trim, refer to SIDE PANEL TRIM, REMOVING AND INSTALLING .
Remove upper and lower B pillar trim: refer to B-PILLAR TRIM, REMOVING AND INSTALLING and/or side panel trim, refer to SIDE PANEL TRIM, REMOVING AND INSTALLING .
Loosen lock nut -10-, this detaches tensioning unit -9- and makes it inactive.
Remove anchor rail -4-, refer to Removing anchor rail (2-door) .
Remove belt guide.
Remove belt reel -1-.
Pull tensioning unit -9- out of mounting bracket -8-.
Installation is in the reverse of removal
WARNING:
- ALWAYS follow the prescribed work sequence.

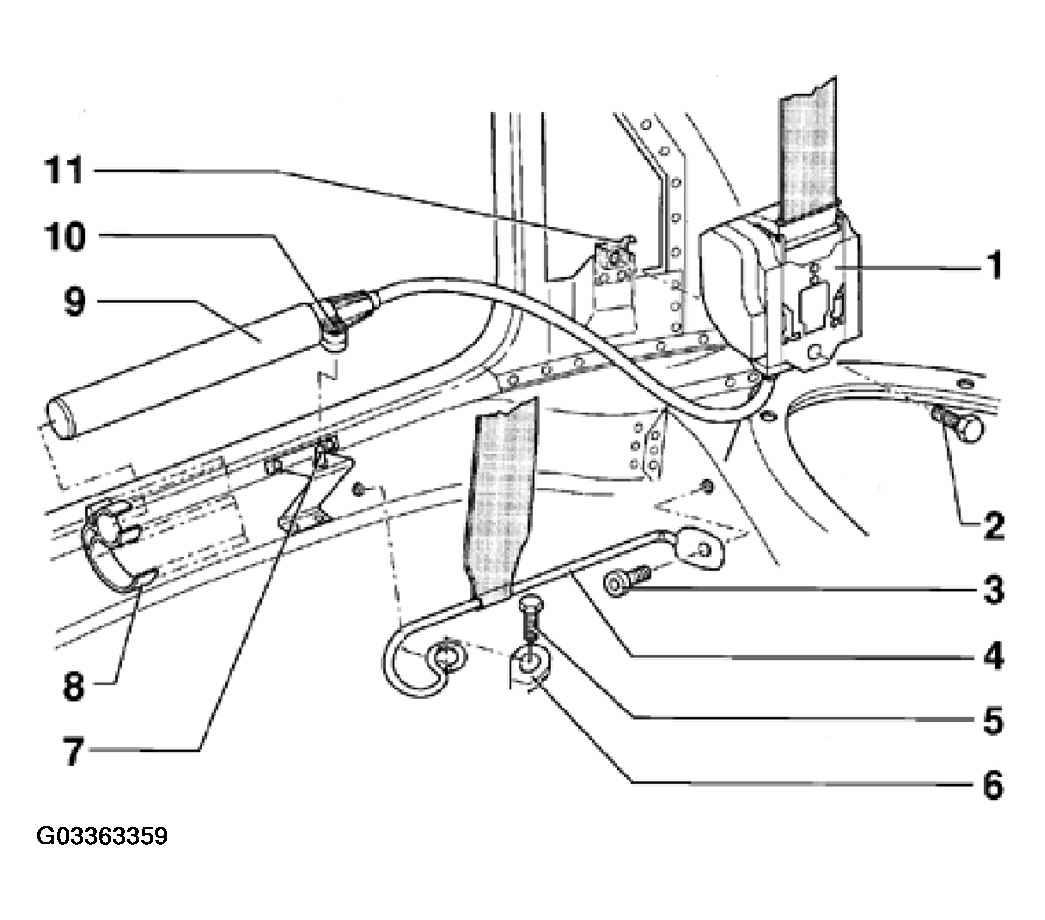

Fig 1: Removing Front Belt Reel With Tensioning Unit (2-Door)
