Steering wheel with airbag, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

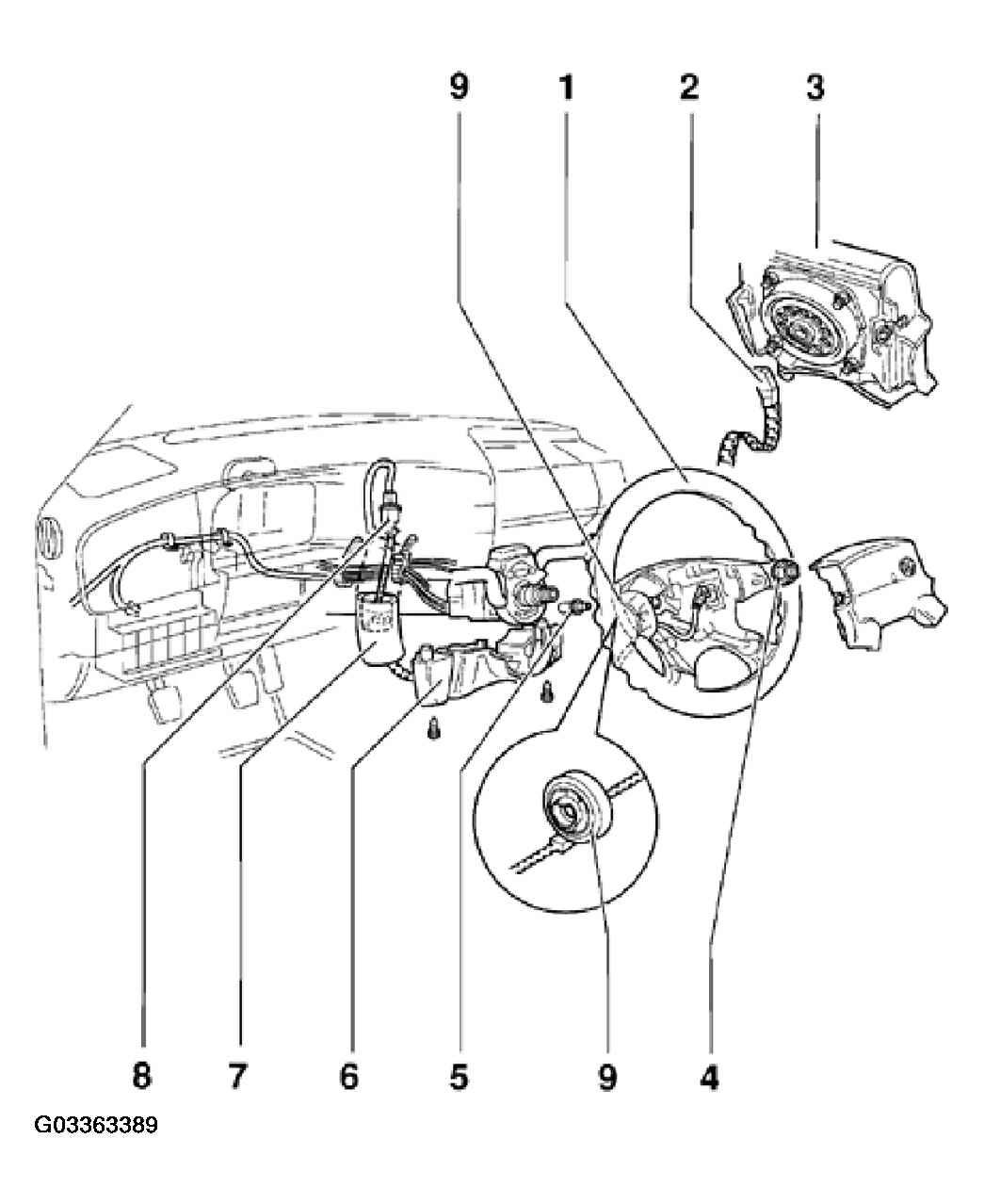

- Remove lower trim -6- from steering column.
- Pull foam tube -7- off harness connector -8- and disconnect connector.
- Remove hex nut -4- and remove steering wheel from steering column.
- Tightening torque (nut -4-): 50 N.m (37 ft lb)NOTE: Airbag spiral spring -9- remains on the steering wheel.
