Side airbag unit, driver's and front passenger side, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

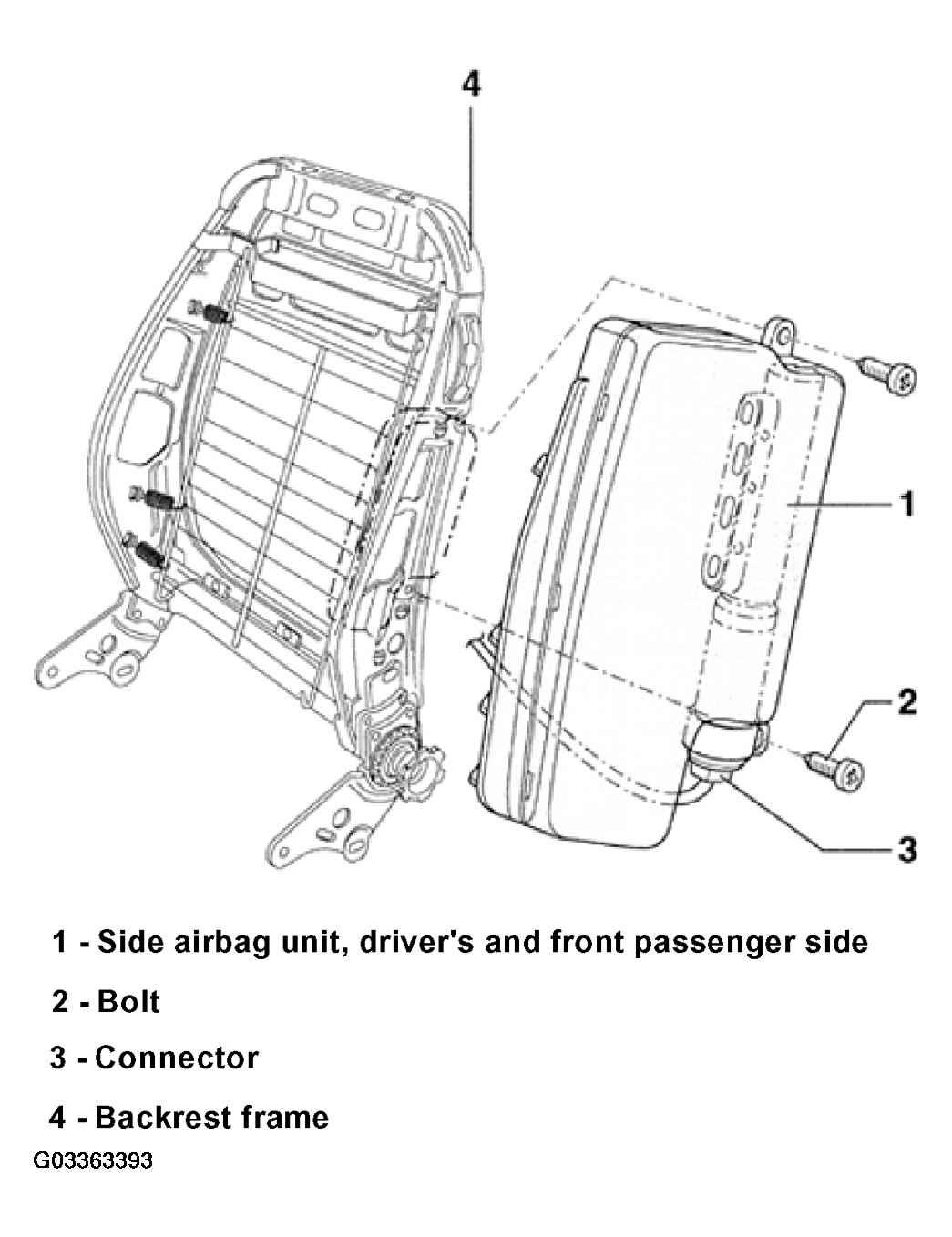

The following list refers to Fig 1
.
- - Side airbag unit, driver's and front passenger side
- - Bolt
- Ground wire secured with bolt - 2 -.
- 7 N.m (62 in. lb)
- - Connector
- - Backrest frame
- Disconnect battery Ground (GND) strap.
- Remove backrest frame, refer to FRONT SEAT BACKREST, REMOVING AND INSTALLING .
- Loosen backrest cover in area of airbag - 1 -.
- Remove bolts - 2 -.
- Disconnect connector - 3 - from airbag unit - 1 -.
- Remove airbag unit - 1 - off backrest frame - 4 -.
