Vehicles up to 02.96
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
Glovebox in knee bar, refer to GLOVEBOX IN KNEE BAR (WITH PASSENGER SIDE AIRBAG), REMOVING AND INSTALLING .
NOTE:

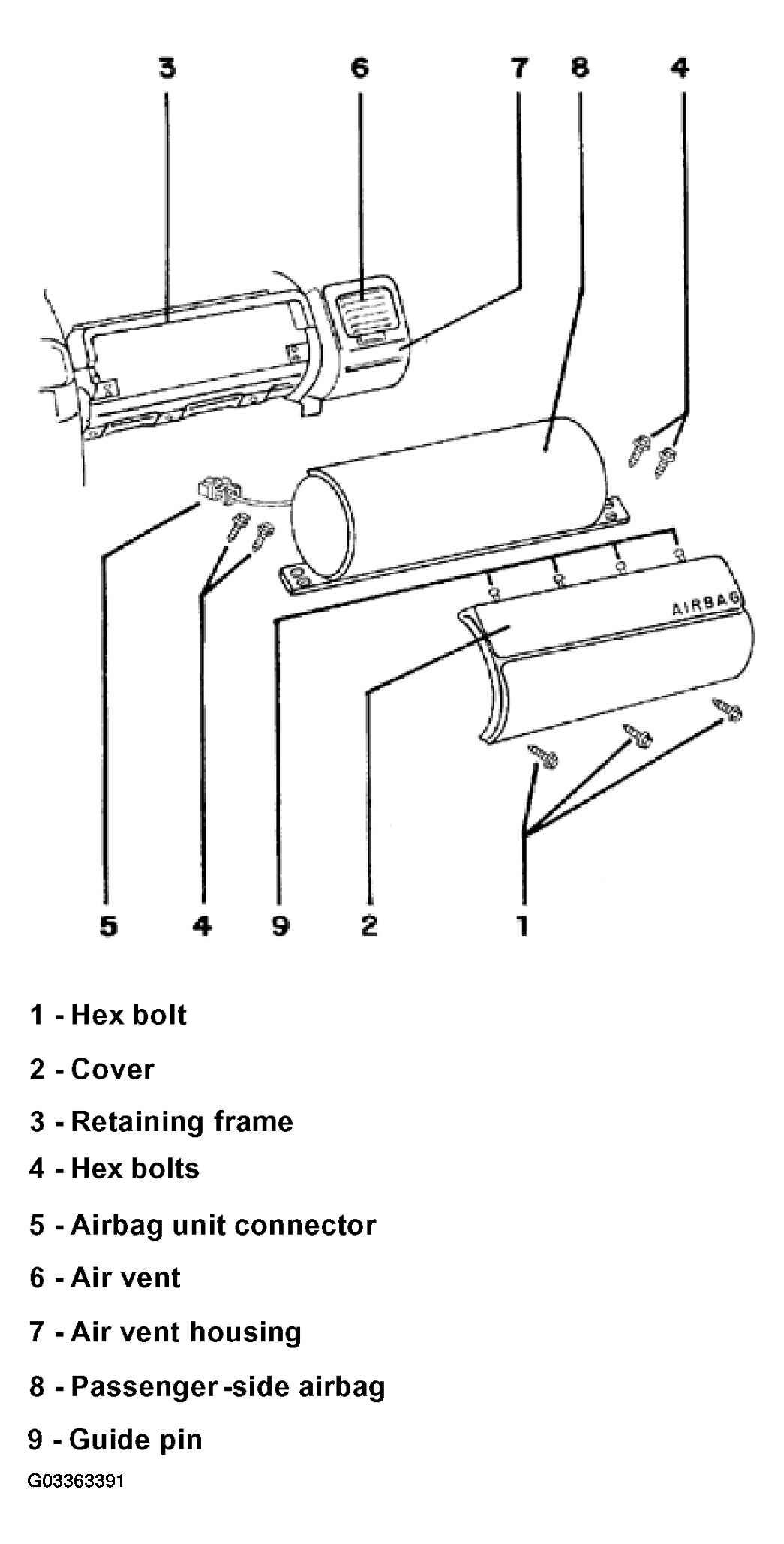

The following list refers to Fig 1
.
- - Hex bolt
- - Cover
- - Retaining frame
- Always replace after airbag has been deployed
- - Hex bolts
- 6.5 N.m (58 in lb)
- - Airbag unit connector
- - Air vent
- - Air vent housing
- - Passenger-side airbag
- Removing and installing, refer to REMOVING and Installing .
- - Guide pin
