Vehicles from 09.94 & up
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

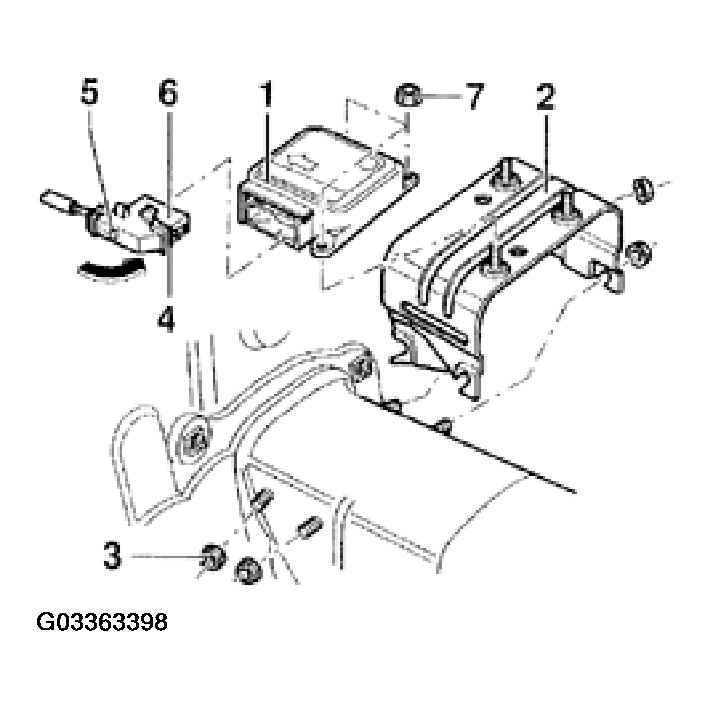

- Siemens control module: Part No. 6N0 909 603 D
- Mounting bracket (Bauer): Part No. 1H0 959 657 B
- Press locking tab -5-, swing connector lock -4- to position shown (arrow), and disconnect harness connector -6- from airbag control module -1-.
- Remove nuts -3- and remove control module -1- with bracket from mounting studs.
Tightening torque (nuts -3-): 20 N.m (15 ft lb)
- Remove nuts -7- and remove airbag control module -1- from bracket.
Tightening torque (nuts -7-): 9 N.m (80 in. lb)
Installation is the reverse order of removal.
CAUTION:
- From 11.94, the control module wiring harness (Part No. 1H0 971 581 B) has been changed to eliminate the brown ground wire. See WIRING HARNESS FOR TEMIC AIRBAG CONTROL MODULE, GOLF, GTI, JETTA UP TO 11.94 .
- The Temic control module needs the ground wire-the Siemens control module does not.
- Only the Siemens control module and the wiring harness without the ground wire will be supplied as replacement parts. Both wiring harnesses, with and without the ground wire, carry the same part number.
- If a Siemens control module is installed in a vehicle original equipped with the Temic control module, the wiring harness does NOT have to be replaced.
- Part numbers are listed for reference only. Always check with your Parts department for the latest information.
