Front and side airbags
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

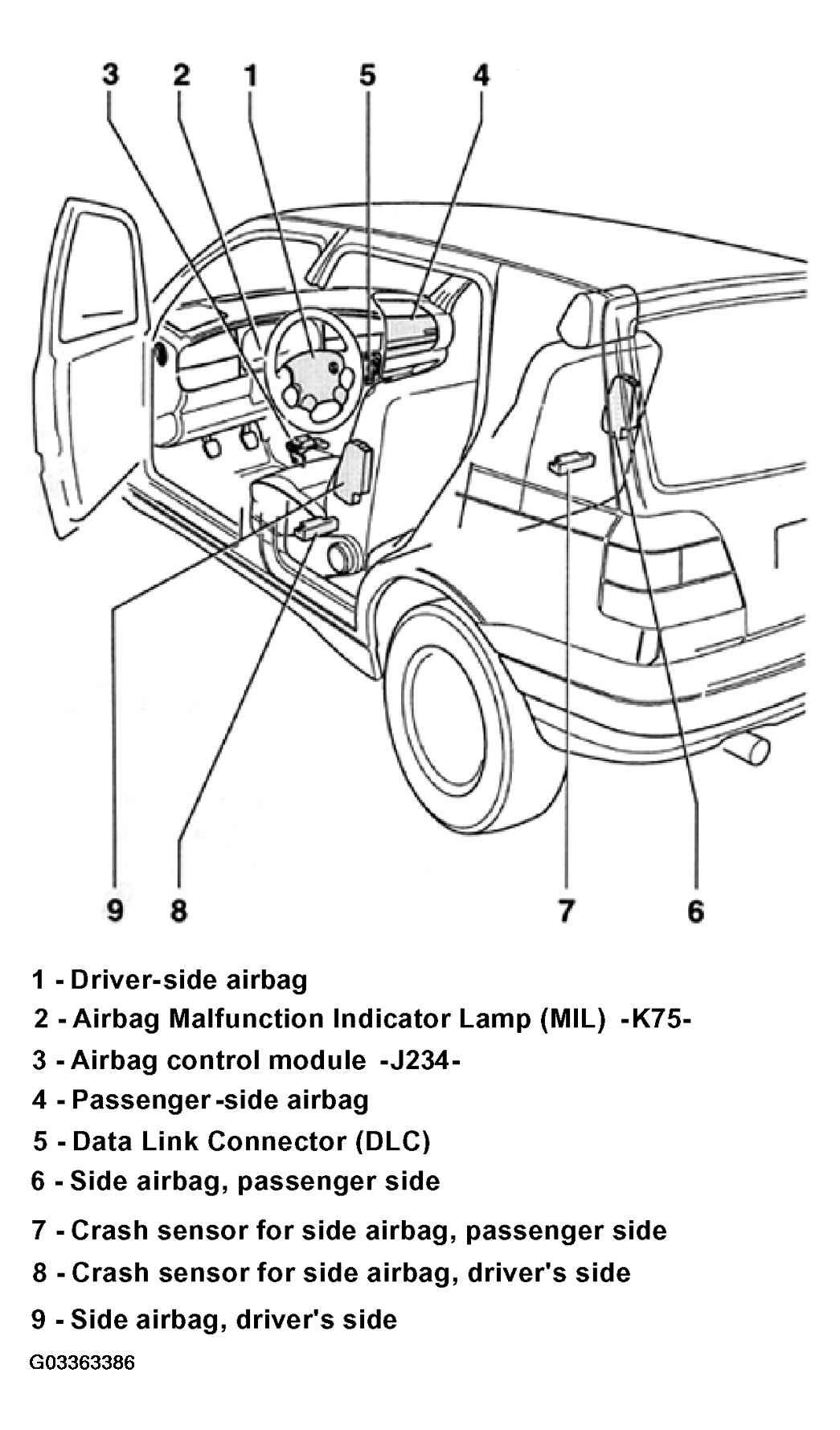

The following list refers to Fig 1
.
- - Driver-side airbag
- Removing and installing, refer to DRIVER-SIDE AIRBAG UNIT, REMOVING AND INSTALLING .
- - Airbag Malfunction Indicator Lamp (MIL) -K75-
- - Airbag control module -J234-
- Removing and installing, refer to AIRBAG CONTROL MODULE, REMOVING AND INSTALLING .
- - Passenger-side airbag
- Removing, refer to PASSENGER-SIDE AIRBAG UNIT, REMOVING AND INSTALLING .
- - Data Link Connector (DLC)
- 16-pin
- - Side airbag, passenger side
- Removing and installing, refer to SIDE AIRBAG UNIT, DRIVER'S AND FRONT PASSENGER SIDE, REMOVING AND INSTALLING .
- - Crash sensor for side airbag, passenger side
- Removing and installing, refer to CRASH SENSOR FOR SIDE AIRBAG, DRIVER'S AND FRONT PASSENGER SIDE, REMOVING AND INSTALLING .
- - Crash sensor for side airbag, driver's side
- Removing and installing, refer to CRASH SENSOR FOR SIDE AIRBAG, DRIVER'S AND FRONT PASSENGER SIDE, REMOVING AND INSTALLING .
- - Side airbag, driver's side
- Removing and installing, refer to SIDE AIRBAG UNIT, DRIVER'S AND FRONT PASSENGER SIDE, REMOVING AND INSTALLING .
