Front airbags
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

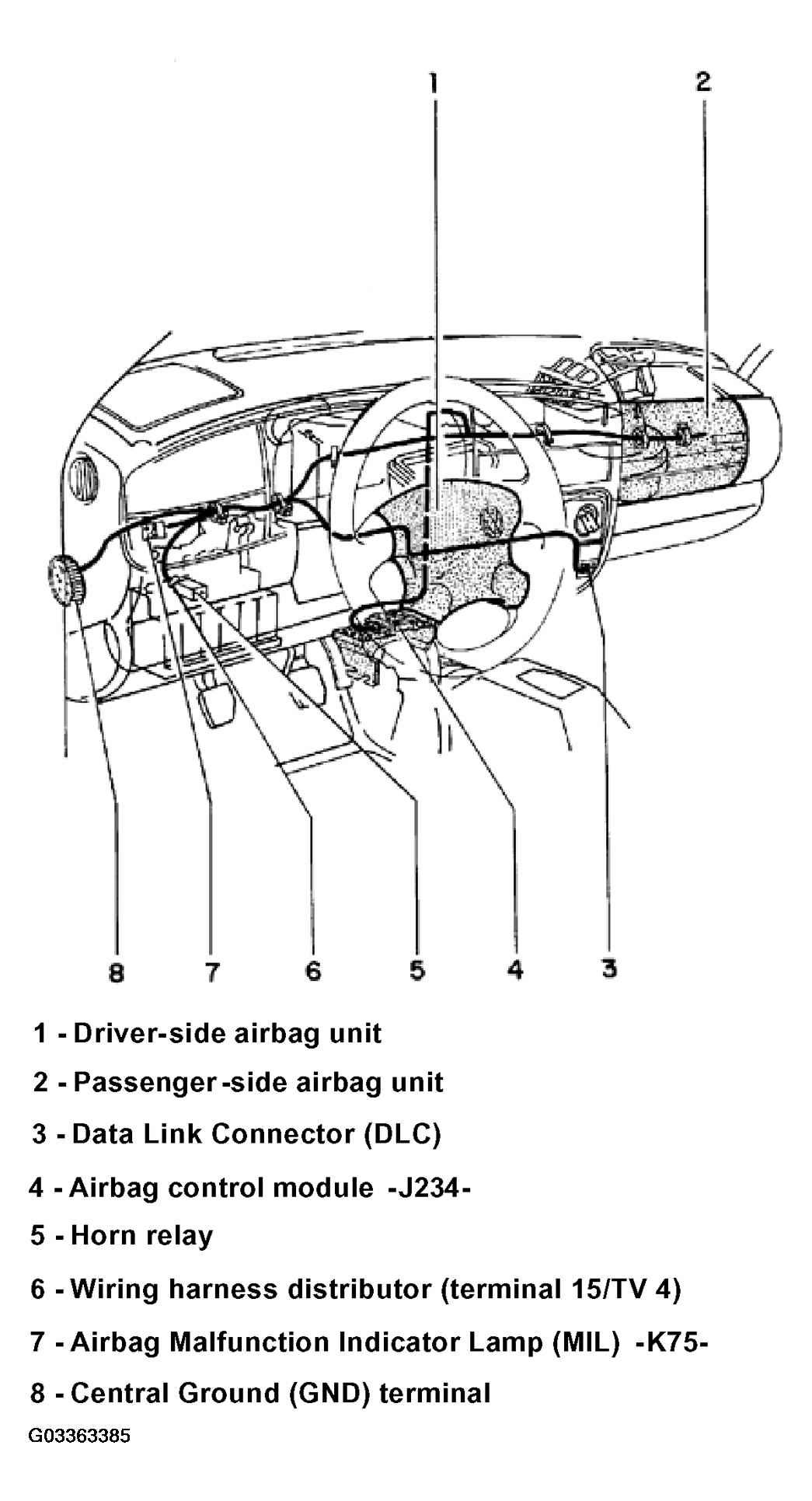

The following list refers to Fig 1
.
- - Driver-side airbag unit
- Removing and installing, refer to DRIVER-SIDE AIRBAG UNIT, REMOVING AND INSTALLING .
- - Passenger-side airbag unit
- Removing and installing, refer to PASSENGER-SIDE AIRBAG UNIT, REMOVING AND INSTALLING .
- - Data Link Connector (DLC)
- 16-pin
- - Airbag control module -J234-
- Removing and installing, refer to AIRBAG CONTROL MODULE, REMOVING AND INSTALLING .
- - Horn relay
- - Wiring harness distributor (terminal 15/TV 4)
- - Airbag Malfunction Indicator Lamp (MIL) -K75-
- - Central Ground (GND) terminal
