Rear lights - Jetta Wagon, assembly
NOTE:

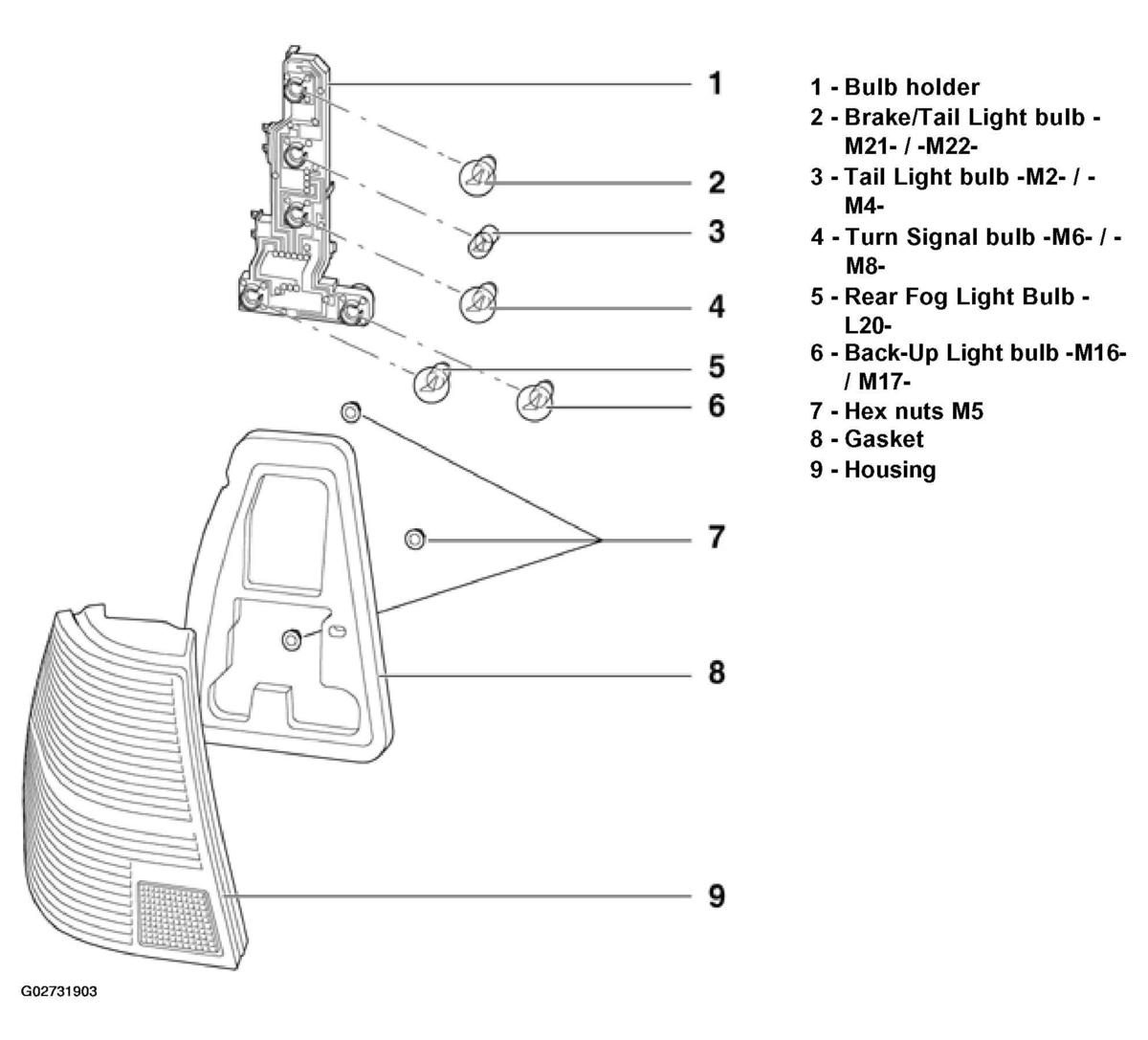

The following list refers to Fig 1.
- Bulb holder
- Removing and installing. See REAR LIGHT BULB HOLDER - GOLF/JETTA, REMOVING AND INSTALLING .
- Brake/Tail Light bulb -M21- / -M22-
12V / 21W/5W
- Tail Light bulb -M2- / -M4-
12V / 5W
Where applicable
- Turn Signal bulb -M6- / -M8-
12V / 21W
- Rear Fog Light Bulb -L20-
12V / 21W
Where applicable - left side only
- Back-Up Light bulb -M16- / -M17-
12V / 21W
- Hex nuts M5
Qty. 3
- Gasket
- Replace if damaged
- Housing
- Removing and installing. See REAR LIGHT HOUSING - JETTA WAGON, REMOVING AND INSTALLING .
