Headlights, assembly
NOTE:
After performing any repairs or service that could affect headlight aim, check/adjust aim. See HEADLIGHTS, ADJUSTING .
NOTE:

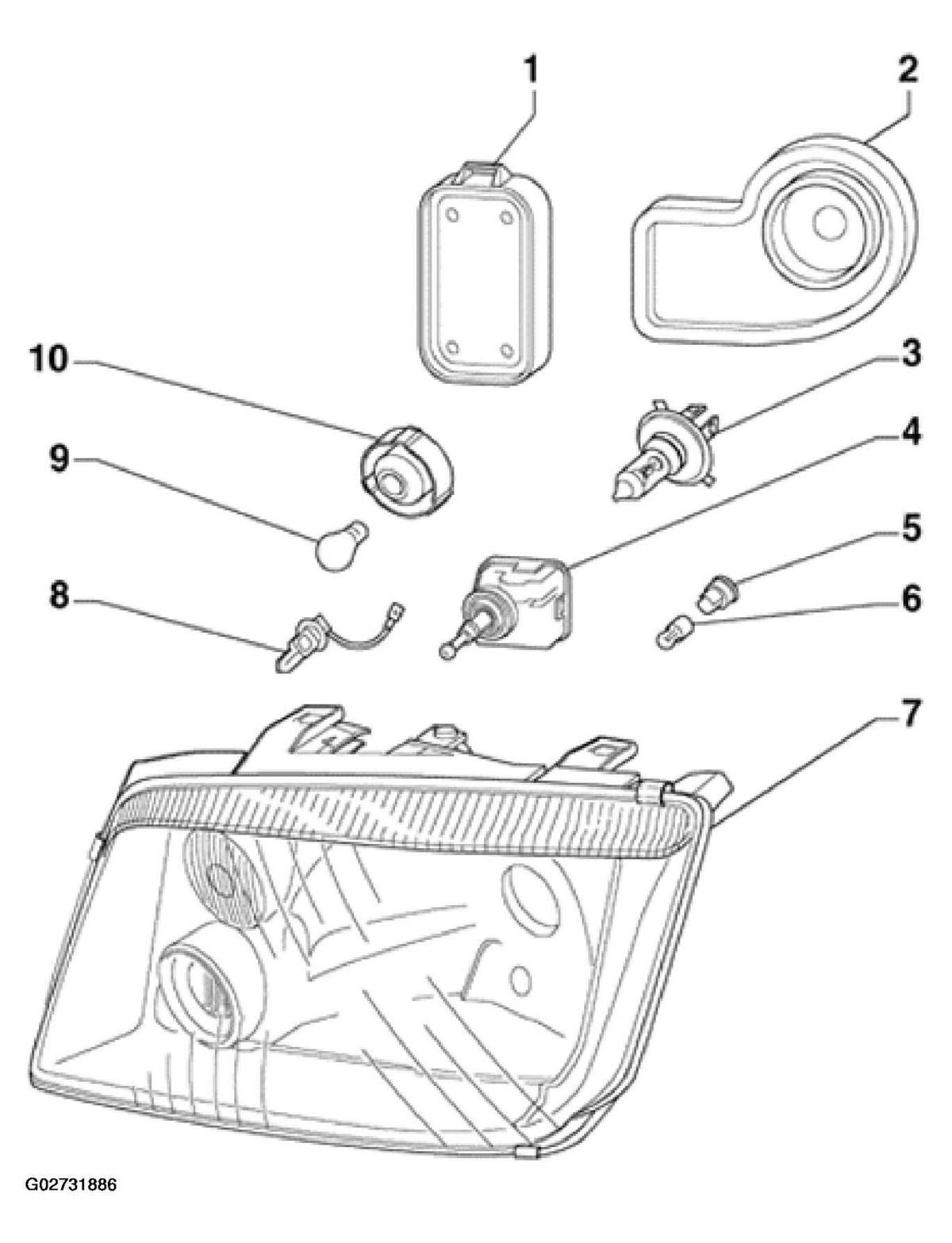

The following list refers to Fig 1.
- Sealing cap
- Sealing cap
- Headlight bulb (low/high beam) -L1-/-L2-
Bulb H4, 12 V, 60 W/55 W
- Replacing. See HEADLIGHT BULBS - LOW/HIGH BEAMS, REPLACING .
- Headlight beam adjusting motor
- Where applicable
- Removing and installing. See HEADLIGHT BEAM ADJUSTING MOTOR, REMOVING AND INSTALLING .
- Not applicable to USA/CDN
- Not applicable to USA/CDN
- Headlight housing
- Adjusting headlight. See HEADLIGHTS, ADJUSTING .
- Removing and installing. See HEADLIGHTS, REMOVING AND INSTALLING .
- Servicing upper housing securing lugs. See HEADLIGHT SECURING LUGS, SERVICING .
- Fog Light bulb -L22- / -L23-
Bulb H3, 12 V, 55 W
- Where applicable
- Replacing. See HEADLIGHT BULBS - FOG LIGHTS, REPLACING .
- Double filament bulb for parking/turn signal light
Bulb 12 V, 21W/5W
- Replacing. See HEADLIGHT BULBS - PARKING LIGHTS/TURN SIGNALS, REPLACING .
- Parking/turn signal light bulb holder
