Electrical/electronic components, location: Notes

WARNING: This page is about a different variant/trim than selected.

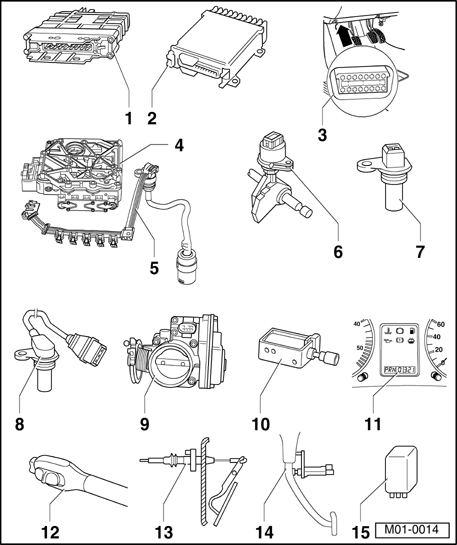

Fig 1: Identifying Automatic Transmission Electrical Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Transmission Control Module (TCM) -J217-

Location. Refer to Location of Transmission Control Module (TCM) -J217-
Removing. Refer to Removing TCM -J217- .
Installing. Refer to Installing TCM -J217-
Checked by On Board Diagnostic (OBD). Refer to VAG 1551 Scan Tool, connecting and selecting functions

2 - Engine Control Module (ECM)

Location and removing and installing. See Engine Control Module .

NOTE: If the engine or transmission control modules are replaced, the system must be returned to basic setting. Refer to Basic setting, initiating , Initiating basic setting.

3 - Data Link Connector (DLC)

Location. See Data Link Connector (DLC) .

4 - Valve body

Location. See Valve body .
Solenoid valves -N88-, -N89-, -N90-, -N91-, -N92-, -N93- and -N94- are attached to valve body
Valves are checked by On Board Diagnostic (OBD)

5 - Conductor strip with integrated Transmission Fluid Temperature Sensor -G93-

Location. See Conductor strip with integrated Transmission Fluid Temperature Sensor -G93- .
Removing and Installing. See Removing and Installing conductor strip .
-G93- is checked by On Board Diagnostic (OBD)

6 - Multi-function Transmission Range (TR) Switch -F125-

Location and removing and installing. See Multi-Function Transmission Range (TR) Switch -F125- .
-F125- is checked by On Board Diagnostic (OBD)

7 - Transmission Vehicle Speed (VSS) Sensor -G38-

Location and removing and installing. See Transmission Vehicle Speed Sensor -G38- .
-G38- is checked by On Board Diagnostic (OBD)

8 - Vehicle Speed Sensor (VSS) -G68-

Location and removing and installing. See Vehicle Speed Sensor (VSS) -G68- .
-G68- is checked by On Board Diagnostic (OBD)

9 - Throttle Position (TP) Sensor -G69-

Signal of -G69- is checked by On Board Diagnostic (OBD)
Location, further information on TP sensor and removing and installing. See Throttle Position (TP) Sensor -G69- .

10 - Shift Lock Solenoid -N110-

Location, removing and installing. See Shift Lock Solenoid -N110- .
The solenoid is checked by On Board Diagnostic (OBD)
Can be checked electrically. Refer to Transmission, electrical check and via reading measured value block. Refer to Measured value block, reading

11 - Transmission Range (TR) Selector Lever Display -Y5-

Location. See Transmission Range (TR) Selector Lever Display -Y5- .

12 - Cruise Control Switch -E45-

Location and removing and installing. See Cruise Control Switch -E45- .
Can be checked via reading measured value block. Refer to Measured value block, reading

13 - Kick Down Switch -F8-

Location, further information on kick-down switch and removing and installing. See Kickdown switch -F8- .
Can be checked electrically. Refer to Transmission, electrical check and via reading measured value block. Refer to Measured value block, reading

14 - Brake Light Switch -F-

Location and removing and installing. See Brake Light Switch -F- .
Can be checked electrically. Refer to Transmission, electrical check and via reading measured value block. Refer to Measured value block, reading

15 - Park/Neutral Position (PNP) Relay -J226-

Location. See Park/Neutral Position (PNP) Relay -J226- .
