Engines: AEG (from model year 1999), AVH, AZG, BEV: Notes
WARNING: This page is about a different variant/trim than selected.

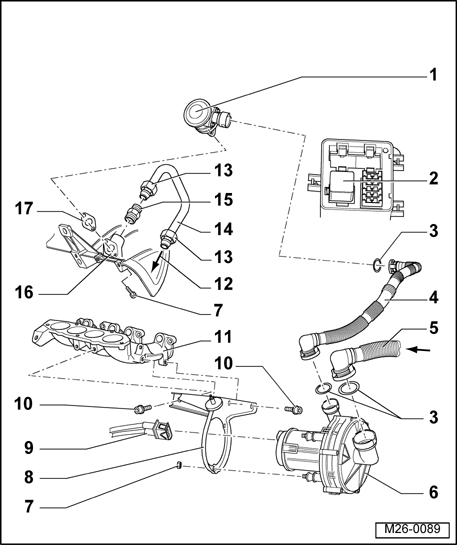

Fig 1: Secondary Air Injection System Components (Engines: AEG (From Model Year 1999), AVH, AZG, BEV)
1 - Combination valve
- Checking. Refer to Combination valve, checking
- To replace, remove warm air collector plate
2 - Secondary Air Injection (AIR) pump relay -J299-
- In protective housing for relays (engine compartment) BEV engines Page Position of relays in protective housing (on left in engine compartment) . See Figure
- In protective housing for relays (engine compartment) AEG, AVH and AZG engines. Refer to Position of relays in protective housing (on left in engine compartment)
3 - O-ring
- Always replace
4 - Pressure hose
- Check if seated securely
- Press together at front to release
5 - Intake hose
- From air cleaner upper part
- For secondary air injection pump
- Check if seated securely
- Press together at front to release
6 - Secondary Air Injection (AIR) pump motor -V101-
- Not checked by final control diagnosis
- Checking. Refer to Secondary air injection pump motor, checking
7 - 10 Nm
8 - Bracket
- For secondary air injection pump motor
- Installed on intake manifold lower part, BEV engine.
- Installed on intake manifold, engines AEG, AVH and AZG
9 - Connector
- 2-pin
10 - 25 Nm
11 - Intake manifold lower part
12 - To union on exhaust manifold
13 - 40 Nm - BEV engine; 30 Nm - AEG, AVH and AZG engines
14 - Connecting pipe
15 - Nuts/bolts, 60 Nm - BEV engine; 35 Nm - AEG, AVH and AZG engines
16 - Warm air collector plate
- With mounting for combination valve
17 - Seal
- Always replace
