Crankshaft, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2006 Volkswagen Golf, 2005 Volkswagen Jetta, 2005 Volkswagen Golf, 2004 Volkswagen Jetta, and 2004 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

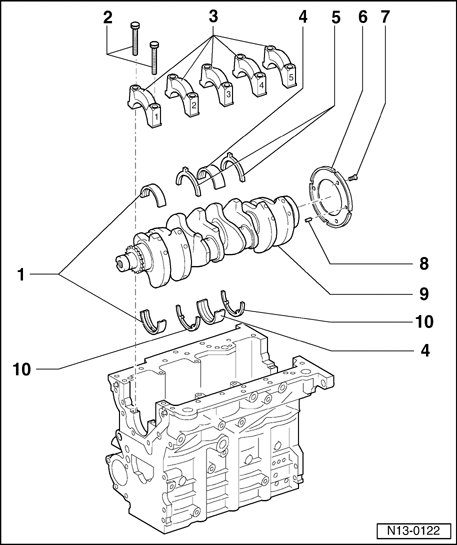

1 - Bearing shells 1, 2, 4 and 5
- For bearing cap without oil groove
- For cylinder block with oil groove
- Do NOT interchange used bearings (mark them)
2 - 65 Nm plus an additional 1 / 4 turn (90 ° )
- Always replace
- To measure radial clearance tighten to 65 Nm but no further
3 - Bearing cap
- Bearing cap 1: Belt pulley side
- Bearing cap 3: with notches for thrust washers
- Bearing shells retaining tabs and cylinder block/bearing caps must be on the same side
4 - Bearing shell 3
- Bearing cap without oil groove
- For engine block with oil groove
- Do NOT interchange used bearings (mark them)
5 - Thrust washer
- For bearing cap 3
- Note positioning
6 - Sensor wheel
- For Engine Speed (RPM) sensor G28
- Replace if damaged
7 - 10 Nm plus an additional 1 / 4 turn (90 ° )
- Always replace
8 - Dowel pin
- Check projection from crankshaft Crankshaft dowel pin projection, checking
9 - Crankshaft
- Axial play new: 0.07 to 0.17 mm; Wear limit: 0.37 mm
- Check radial clearance with Plastigage 0.03 to 0.08 mm; Wear limit: 0.17 mm
- Do not turn crankshaft when measuring radial play
- Crankshaft dimensions. Refer to Crankshaft dimensions
10 - Thrust washer
- For engine block, bearing 3
