Differential, adjusting

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Tighten bearing body with 3155 to 150 N.m (111 ft lb) up to stop and secure.
Tighten adjusting ring to 50 N.m (37 ft lb) and mark.
NOTE: When measuring, do not turn differential, otherwise bearings will settle and measurement will be incorrect.
Turn adjusting ring by five locking tabs -arrow- and secure to achieve tapered roller bearing preload.

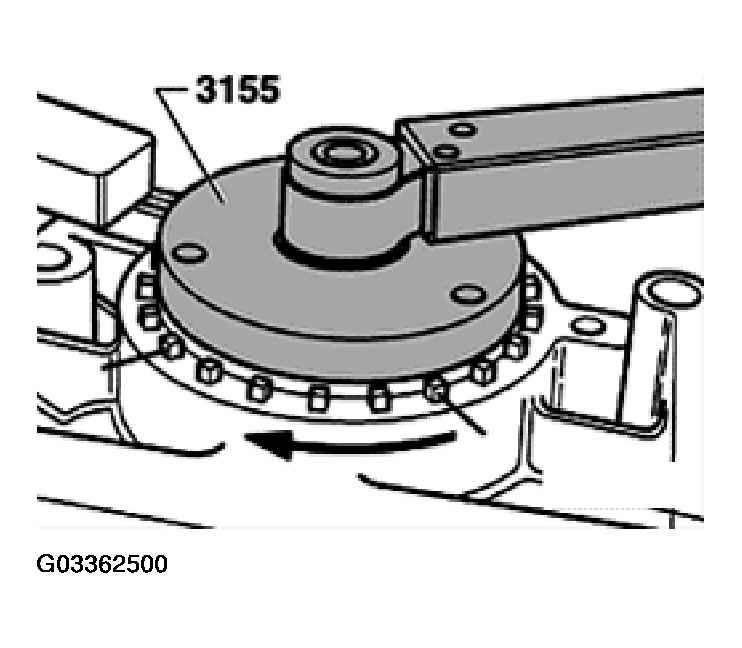

Fig 1: Tightening Bearing Body

Courtesy of VOLKSWAGEN OF AMERICA, INC.
