Transmission, disassembling

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Place drain pan under transmission

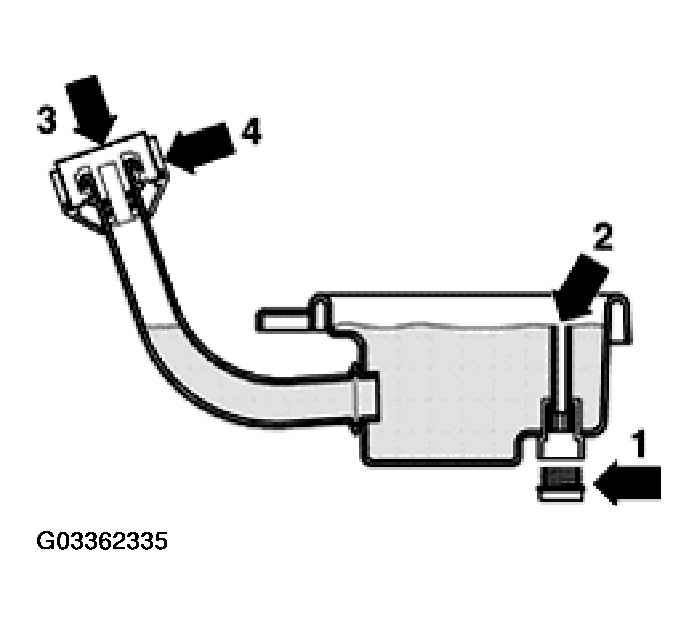

Remove sealing plug -1- and ATF overflow line -2-.

Fig 1: Removing Sealing Plug And ATF Overflow Line
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Drain ATF
3 - Sealing plug

4 - Cap
Seal ATF cooler connections.
Remove torque converter

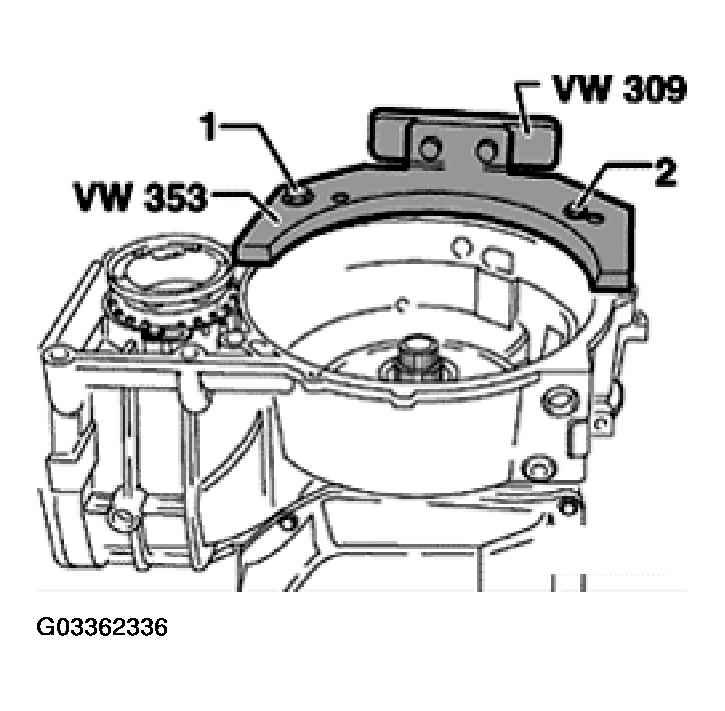

Secure transmission to assembly support with bolts -1- and -2- (M10).

Fig 2: Securing Transmission To Assembly Support With Bolts

G03362336

Courtesy of VOLKSWAGEN OF AMERICA, INC.

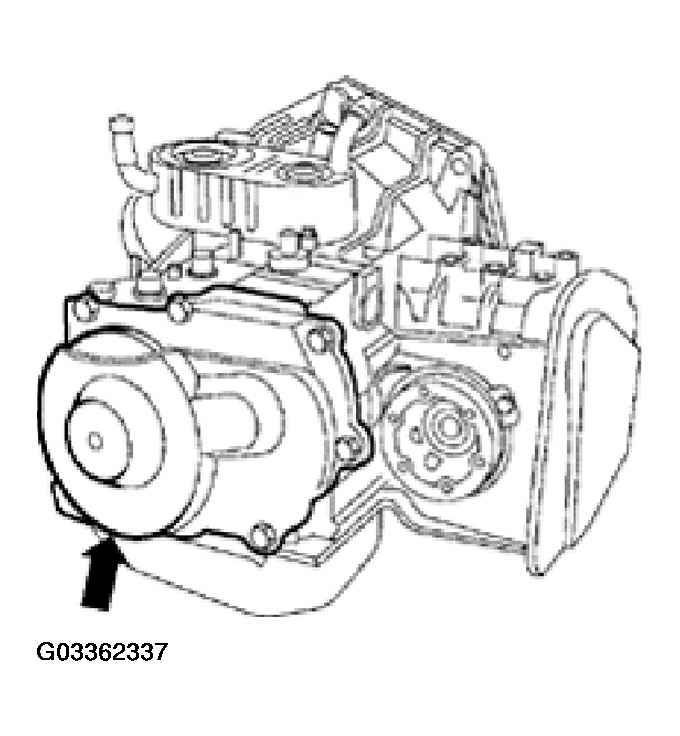

Remove transmission housing cover with gasket -arrow-

Fig 3: Removing Transmission Housing Cover With Gasket
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove oil pan.
Remove ATF screen.

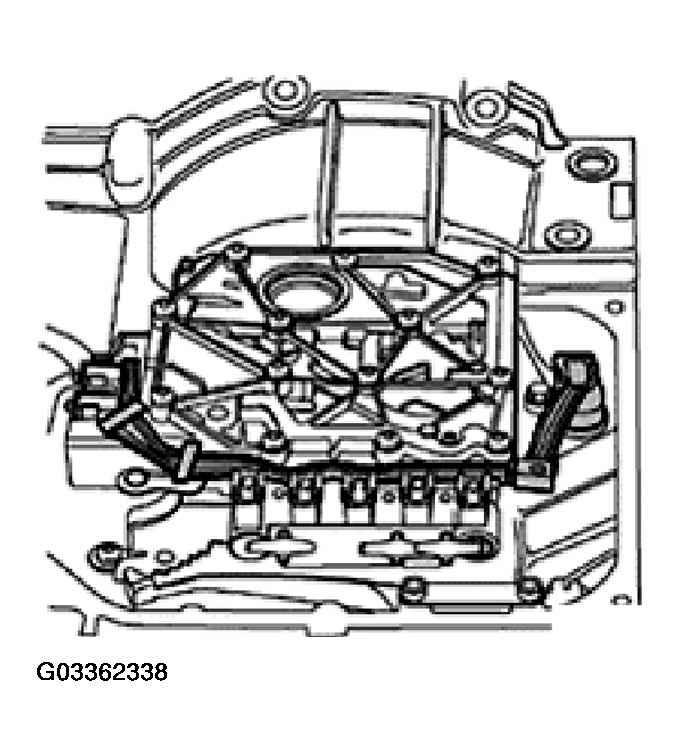

Remove valve body with conductor strip, see VALVE BODY, REMOVING AND INSTALLING

Fig 4: Removing Valve Body With Conductor Strip

G03362338

Courtesy of VOLKSWAGEN OF AMERICA, INC.

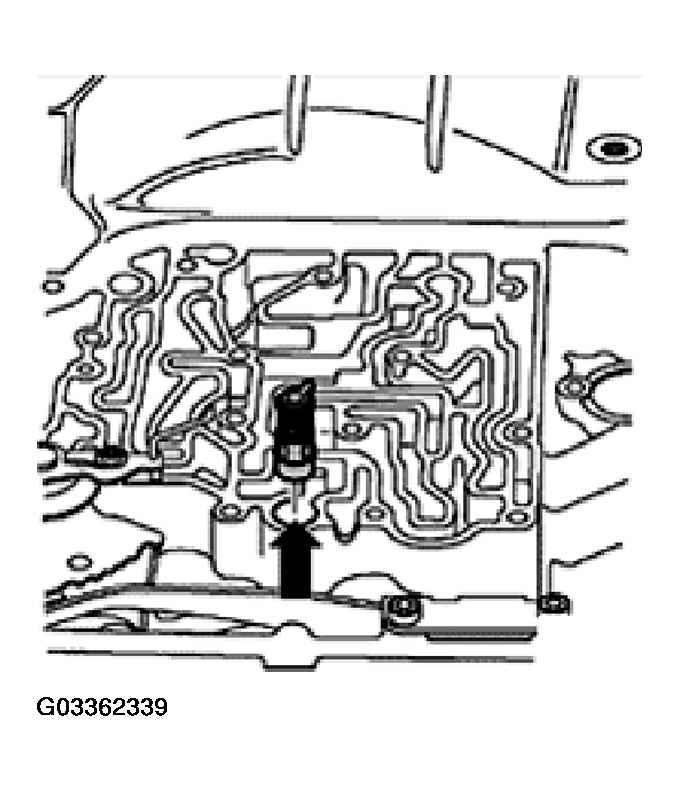

Remove sealing plugs for -B1- -arrow-.

Fig 5: Removing Sealing Plugs

G03362339

Courtesy of VOLKSWAGEN OF AMERICA, INC.

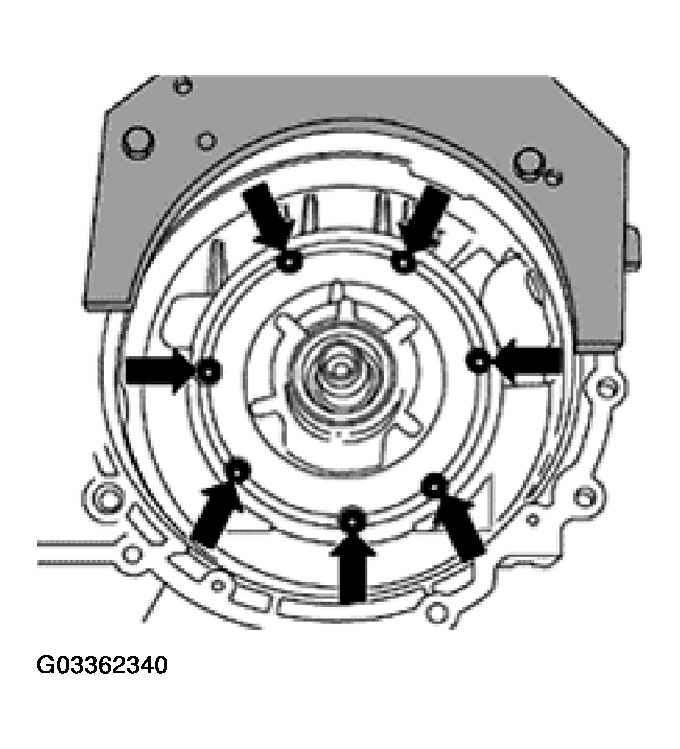

Remove ATF pump bolts -arrows-.

Fig 6: Removing ATF Pump Bolts

G03362340

Courtesy of VOLKSWAGEN OF AMERICA, INC.

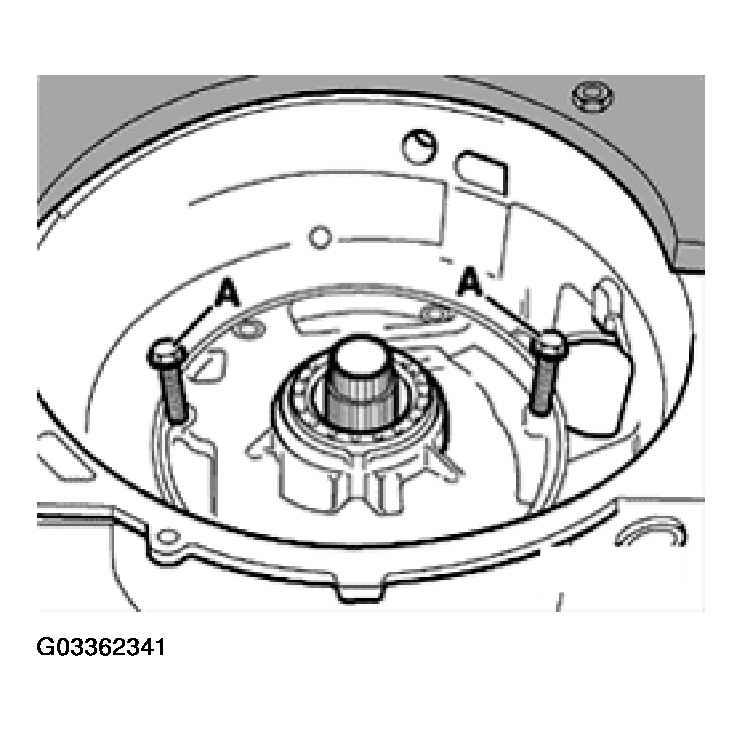

Install bolts -A- (M8) in threaded holes of ATF pump.
Press ATF pump off transmission by turning bolts -A-evenly.

Fig 7: Installing Bolts In Threaded Holes Of ATF Pump

G03362341

Courtesy of VOLKSWAGEN OF AMERICA, INC.

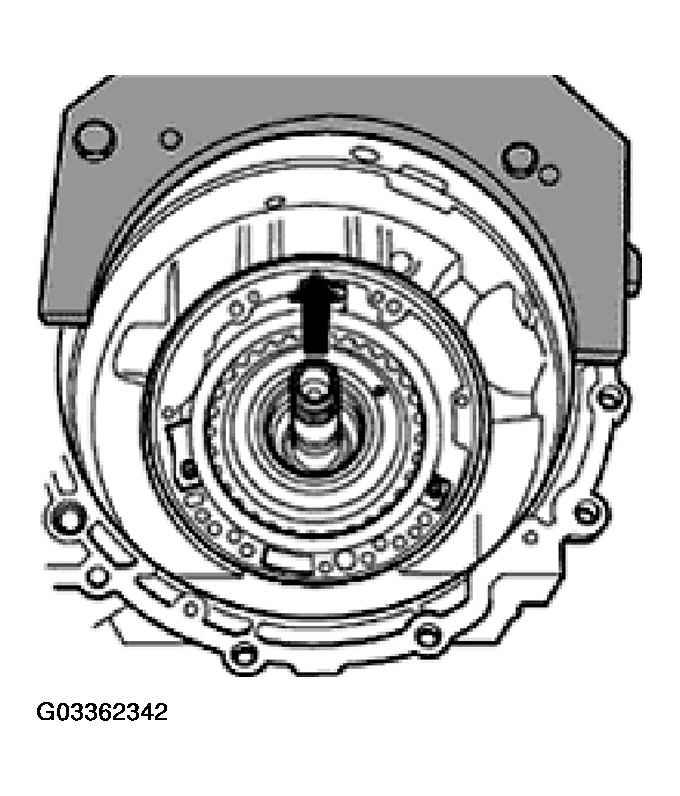

Remove all clutches with support sleeve, -B2- plates, springs and spring caps together.

Fig 8: Removing Clutches With Support Sleeve, -B2- Plates, Springs And Spring Caps

G03362342

Courtesy of VOLKSWAGEN OF AMERICA, INC.

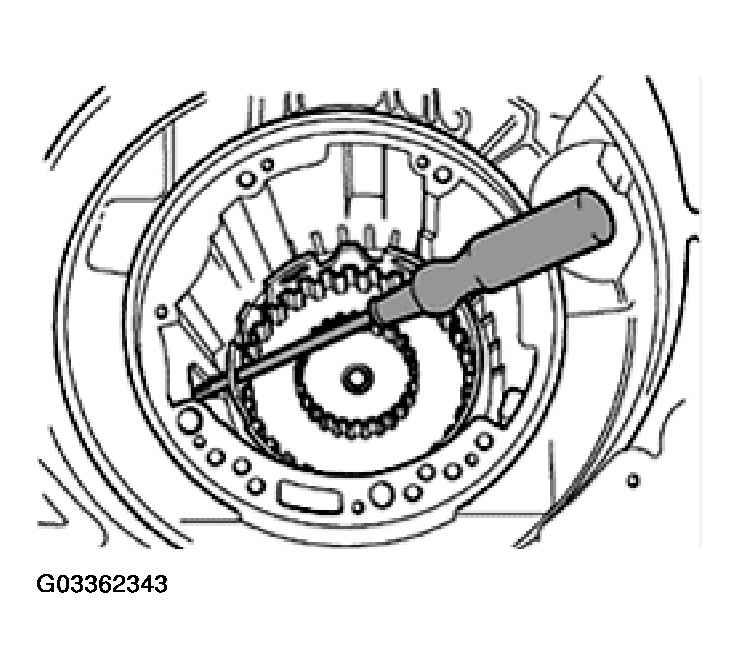

Insert screwdriver through hole of large sun gear to loosen and tighten bolt for small input shaft.

Fig 9: Inserting Screwdriver Through Hole Of Large Sun Gear

G03362343

Courtesy of VOLKSWAGEN OF AMERICA, INC.

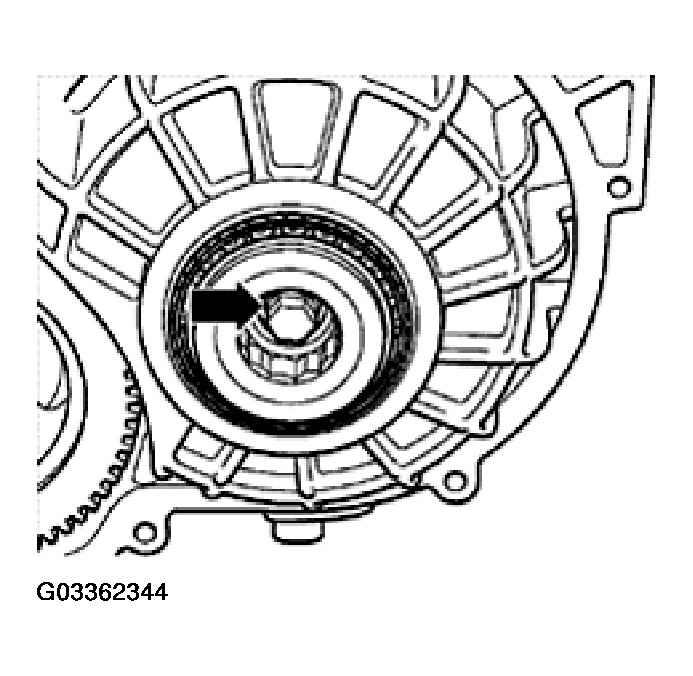

Loosen small input shaft bolt -arrow-.
Remove small input shaft bolt, washer and shim.
Planet carrier axial needle bearing remains in transmission/input gear.
Remove small input shaft.

Fig 10: Loosening Small Input Shaft Bolt

G03362344

Courtesy of VOLKSWAGEN OF AMERICA, INC.

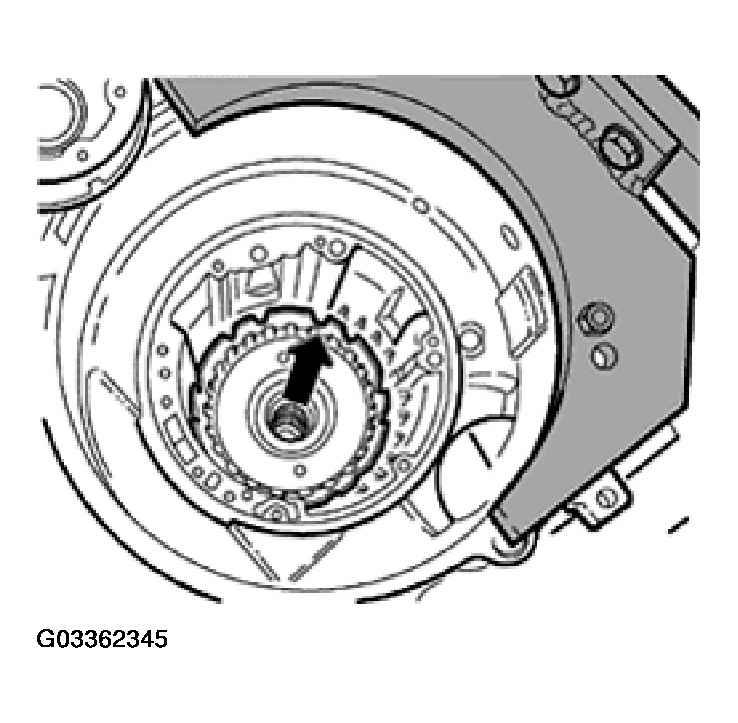

Pull out large input shaft -arrow-.

Fig 11: Pulling Out Large Input Shaft

G03362345

Courtesy of VOLKSWAGEN OF AMERICA, INC.

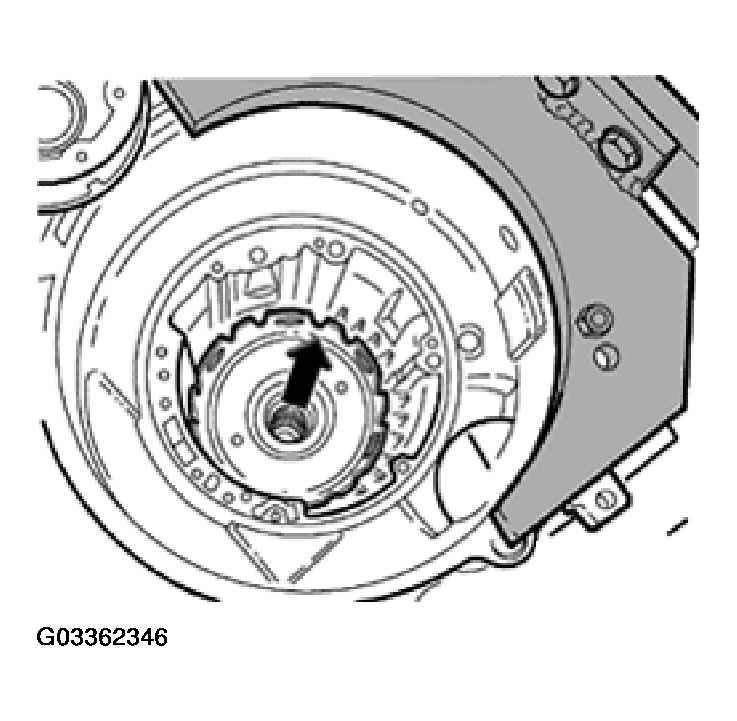

Pull out large sun gear -arrow-.

Fig 12: Pulling Out Large Sun Gear

G03362346

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove Transmission Vehicle Speed Sensor (VSS) -G38-
See VEHICLE SPEED SENSOR (VSS) -G68-, REMOVING AND INSTALLING

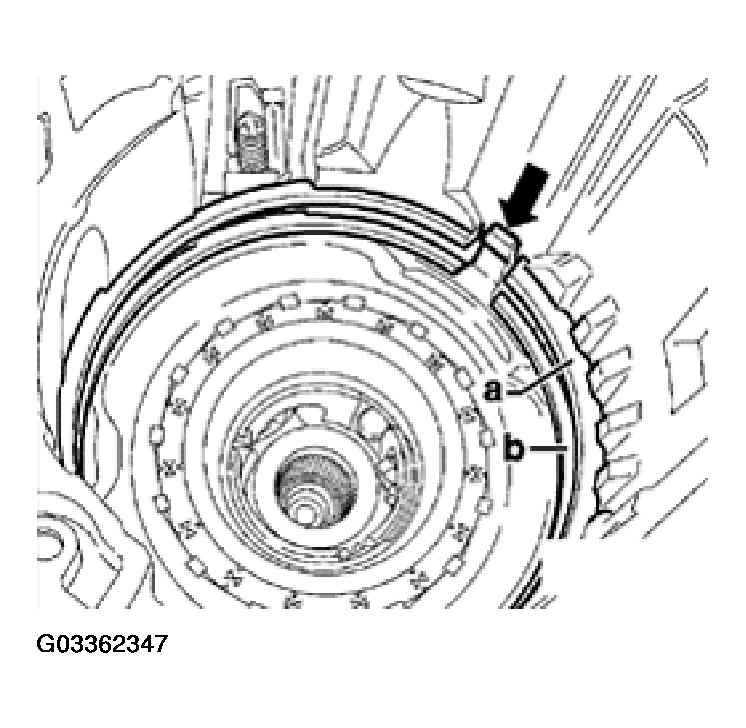

Remove supporting tube circlip -a- and free wheel circlip -b-.
Remove free wheel out of transmission housing by pulling on free wheel retaining wedge -arrow- with pliers.

Fig 13: Removing Supporting Tube Circlip And Free Wheel Circlip

G03362347

Courtesy of VOLKSWAGEN OF AMERICA, INC.

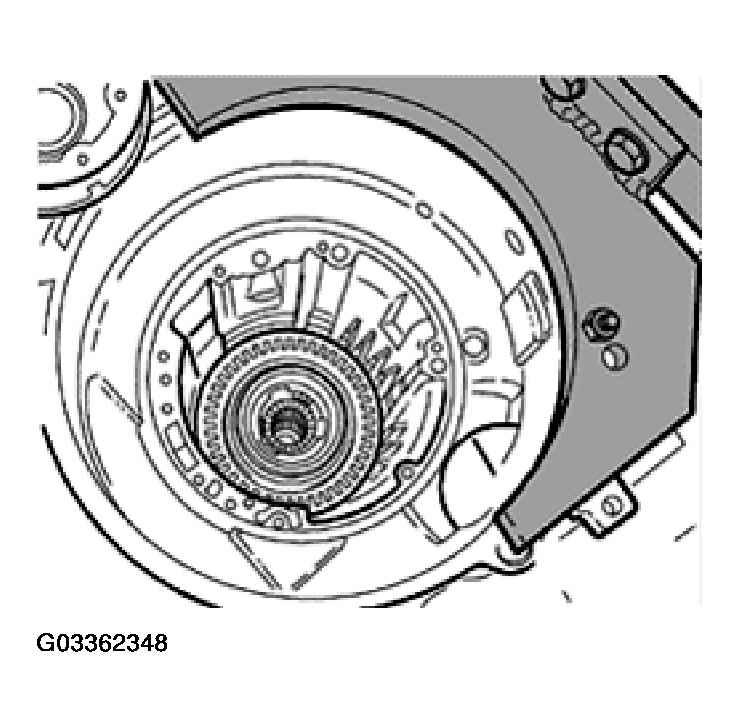

Remove planet carrier with dished spring.

Fig 14: Removing Planet Carrier With Dished Spring
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove reverse gear brake -B1- plates.
NOTE:
- It is not necessary to remove input gear to disassemble transmission. Input gear, removing and installing, see INPUT GEAR, REMOVING AND INSTALLING .
- Transmission, assembling, see TRANSMISSION, ASSEMBLING .
