Installing thrust plate and plates onto inner plate carrier

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Install thrust plate -a- with smooth side facing inner plate and stepped side toward inner plate carrier.
Install 3 inner plates -b- and 2 outer plates -c-.
Insert supporting ring with step (arrow) after installing thrust plate as well as inner and outer plates.

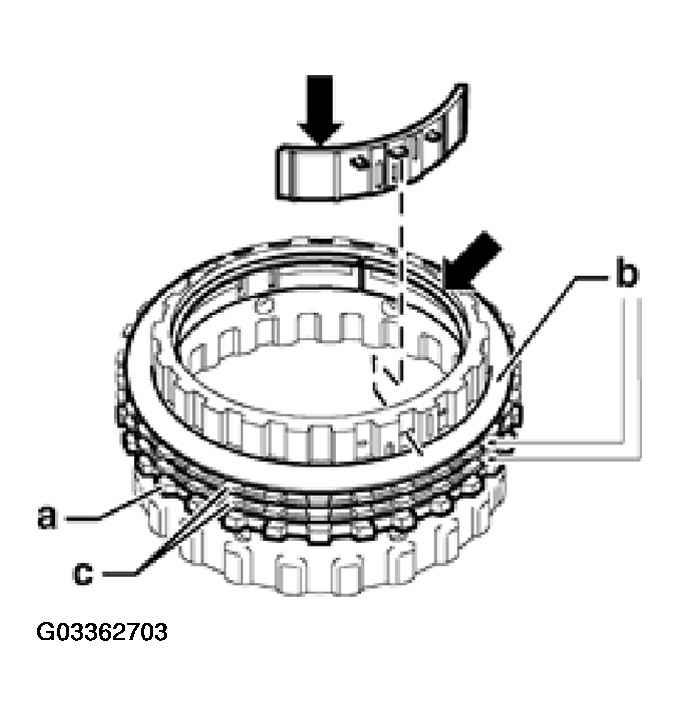

Fig 1: Installing Thrust Plate And Plates Onto Inner Plate Carrier: 1st To 3rd Gear Clutch With Turbine Shaft (Transmissions From 01.93)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
NOTE:
- Locate locating lugs correctly.
- Installing corrugated washer and additional plates in clutch housing. See Installing corrugated washer and inner and outer plates in clutch housing .
