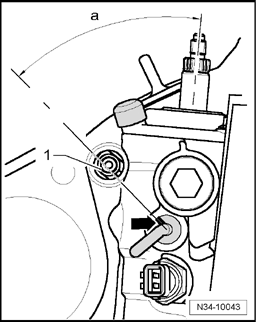

Fig 1: Installed Position Of Lock Elbow
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Marking on lock elbow - arrow
- must point to slave cylinder connection - 1
-
