Display group 016 at idle: Additional Heater

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Passat, 1997 Volkswagen Jetta, and 1996 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

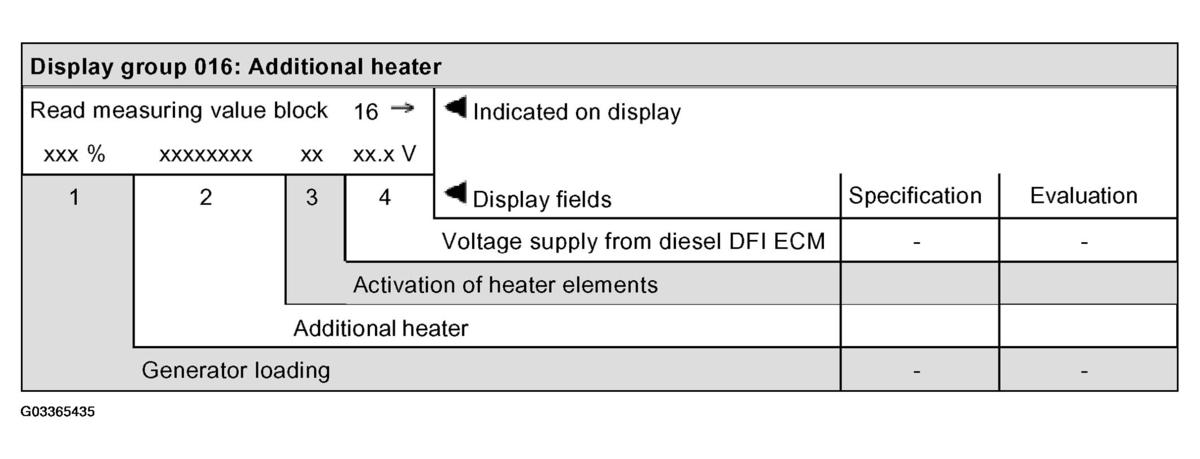

Fig 1: Identifying Display Group 016: Additional Heater
G03365435
NOTE: For Evaluations in Fig 1, see Evaluation: Additional heater display  or Evaluation: Heater element activation display .
