Display group 013 at idle (engine warm, engine coolant temperature at least 80° C or 176° F)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Passat, 1997 Volkswagen Jetta, and 1996 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

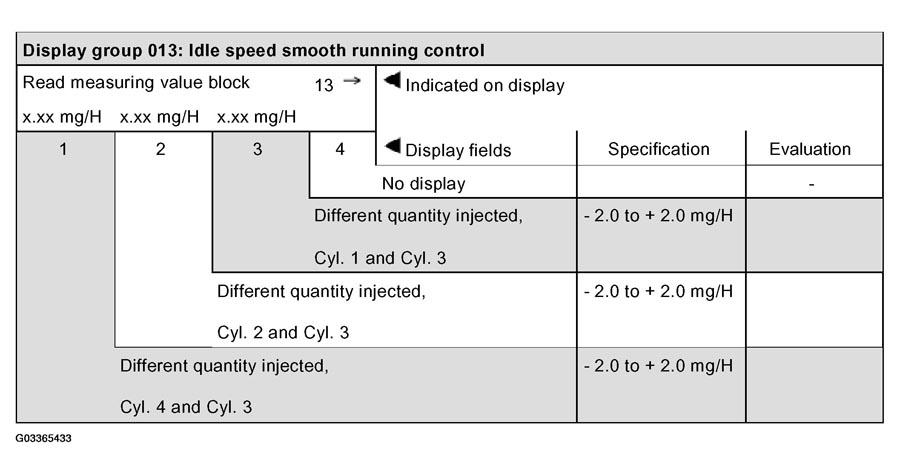

Fig 1: Identifying Display Group 013: Idle Speed Smooth Running Control
G03365433
NOTE: For Evaluations in the previous graphic, see Idle speed smooth running control, display evaluation
