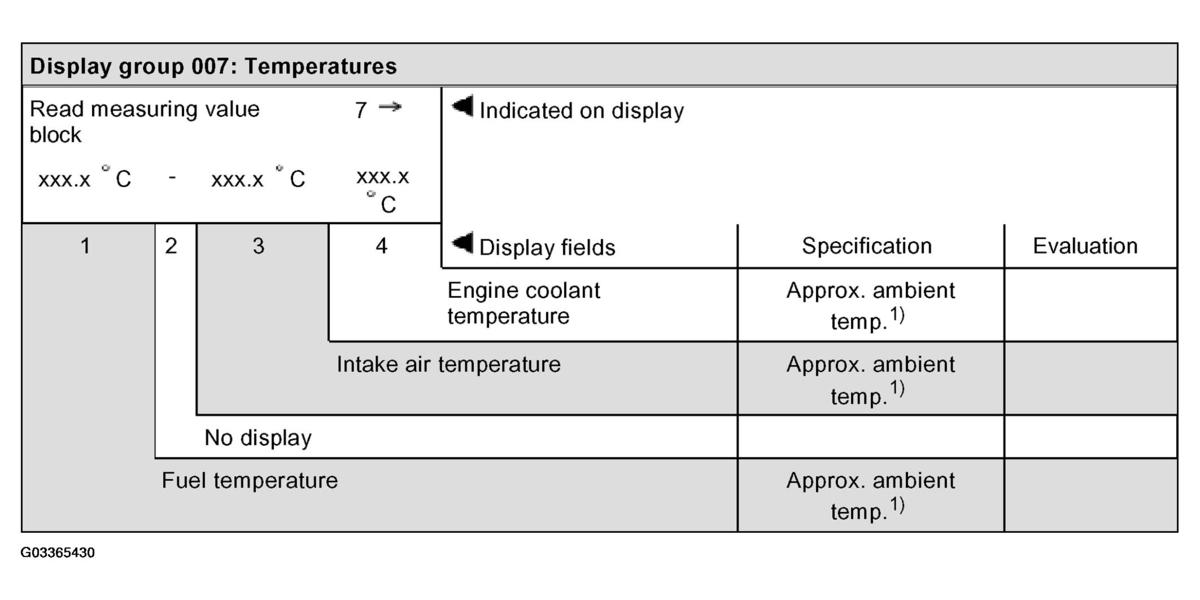

Display group 007 with ignition switched ON (engine cold and NOT running)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Passat, 1997 Volkswagen Jetta, and 1996 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.
1) Approx. ambient temp: Details of the temperature specifications are not possible. When the engine is cold, the fuel, intake air and engine coolant temperatures must be approximately equal to the ambient temperature. If a temperature deviates significantly from ambient, then the relevant sensor must be checked.
NOTE:
For Evaluations in Fig 1, see Evaluation: Fuel temperature display , Evaluation: Intake Air Temperature display or Evaluation: Coolant temperature display .
