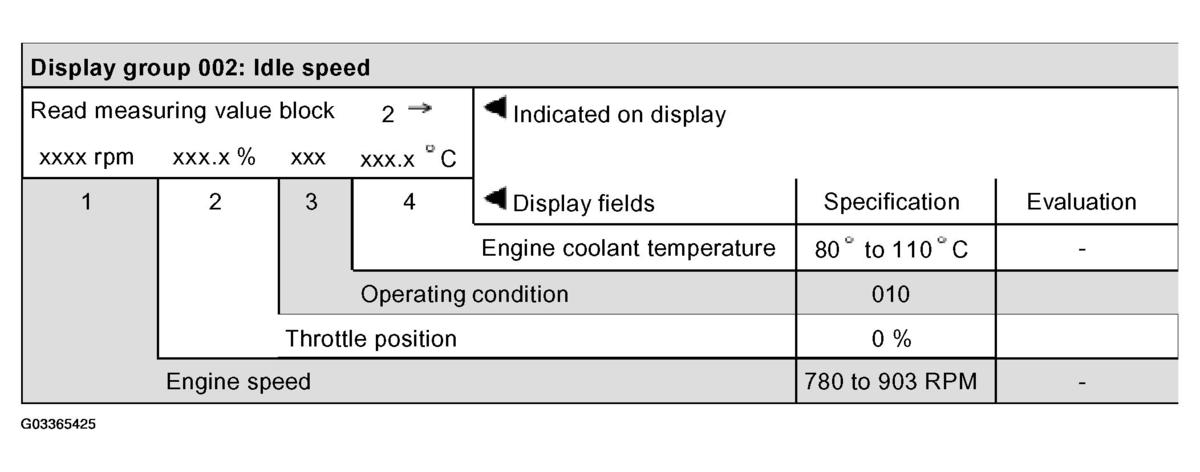

Display group 002 at idle (engine coolant temperature at least 80 °C or 176 °F)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Passat, 1997 Volkswagen Jetta, and 1996 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Evaluations in Fig 1, see Evaluation: Accelerator pedal position display or Evaluation: Operating condition display .
