Fuel Pump (FP) Module, removing and installing: Removing: Notes
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Observe safety precautions, See SAFETY PRECAUTIONS
- Ignition turned OFF
NOTE:
Obtain radio code before disconnecting battery.
- Disconnect battery ground (GND) strap.
- Remove cover in luggage compartment floor.

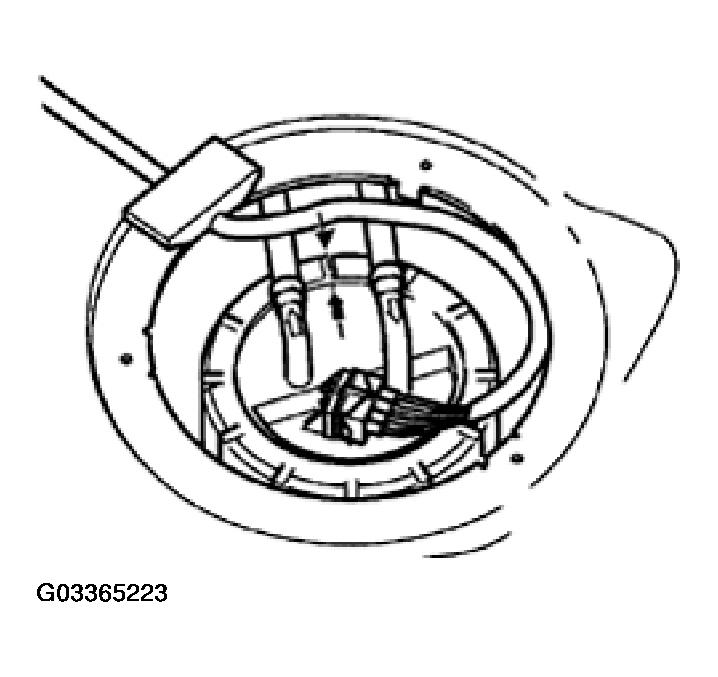

- Disconnect 4-pin connector, fuel supply line and fuel return line from flange.
- Remove flange cap nut with tool 3217.
- Remove flange and sealing ring from fuel tank opening.
- Observe safety precautions, See SAFETY PRECAUTIONS
NOTE:
If the Fuel Pump (FP) Module is still filled with fuel, empty before replacing.
