Vehicles with Leak Detection Pump (LDP) -V144-
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles 1996-1999
NOTE:

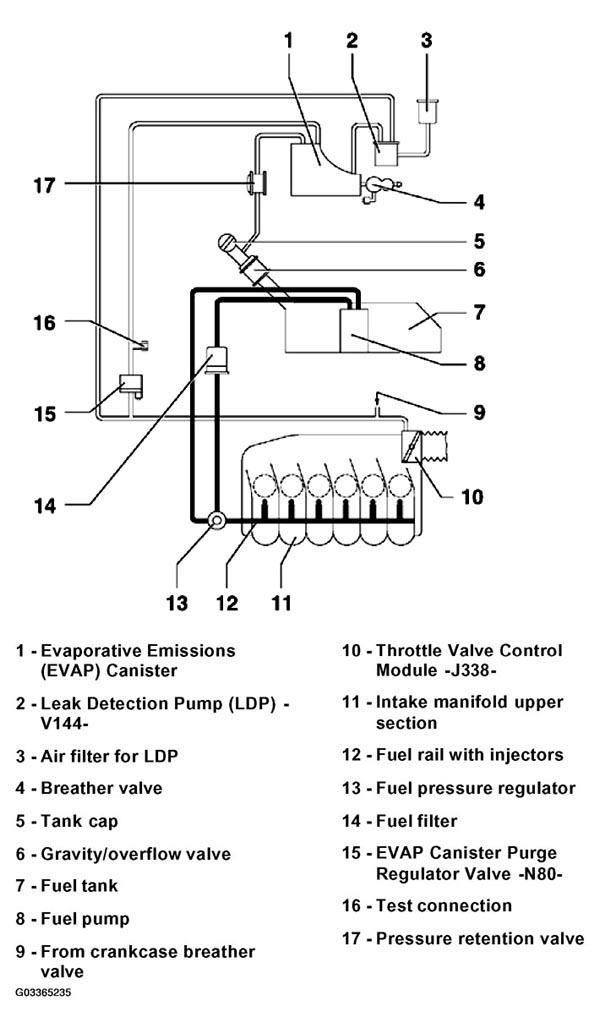

The following list refers to items in Fig 1
.
- - Evaporative Emissions (EVAP) Canister
- - Leak Detection Pump (LDP) - V144-
- - Air filter for LDP
- - Breather valve
- - Tank cap
- - Gravity/overflow valve
- - Fuel tank
- - Fuel pump
- - From crankcase breather valve
- - Throttle Valve Control Module -J338-
- - Intake manifold upper section
- - Fuel rail with injectors
- - Fuel pressure regulator
- - Fuel filter
- - EVAP Canister Purge Regulator Valve -N80-
- - Test connection
- - Pressure retention valve
