Vehicles w/o Leak Detection Pump (LDP) -V144-

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to items in Fig 1 .
  1. - Evaporative Emissions (EVAP) Canister
  2. - Breather valve
  3. - Tank cap
  4. - Gravity/overflow valve
  5. - Fuel tank
  6. - Fuel pump
  7. - Throttle valve
  8. - Intake manifold upper section
  9. - Fuel rail with injectors
  10. - Fuel pressure regulator
  11. - Fuel filter
  12. - EVAP canister purge regulator valve -N80-
  13. - Pressure retention valve

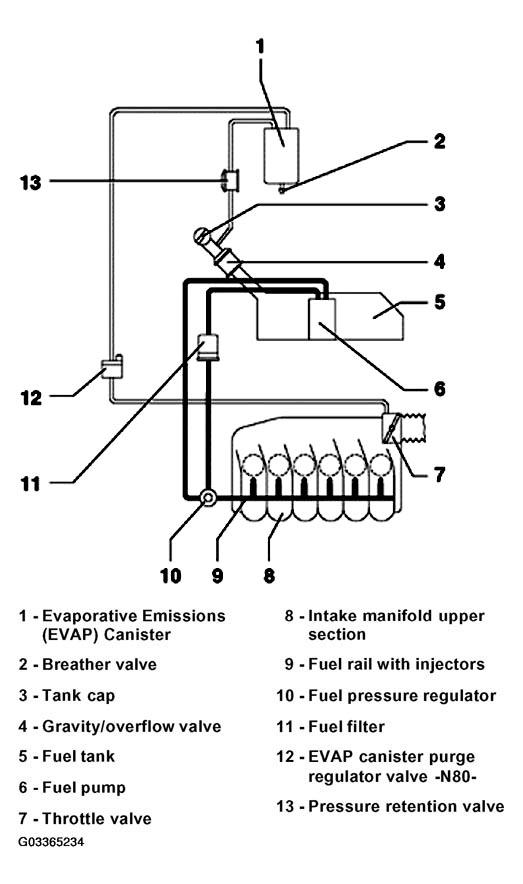

Fig 1: Identifying Evaporative Emissions System Hose Routing (Vehicles Up To 1995)
G03365234
