Accelerator pedal cable, adjusting

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Remove spark plug connectors and cables:
Remove cable guides -1- and -2-.
Remove cover above upper intake manifold -3-.

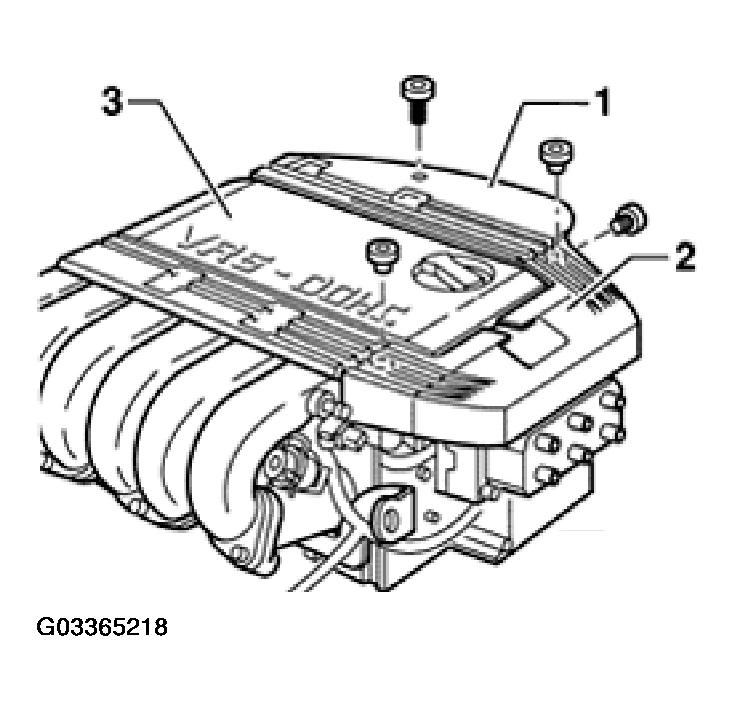

Fig 1: Removing Cable Guides Cover Above Upper Intake Manifold

Vehicles with manual transmission

Adjust accelerator pedal cable by moving retainer clip - arrow- at the support bracket, until throttle valve is fully open (Wide Open Throttle position).

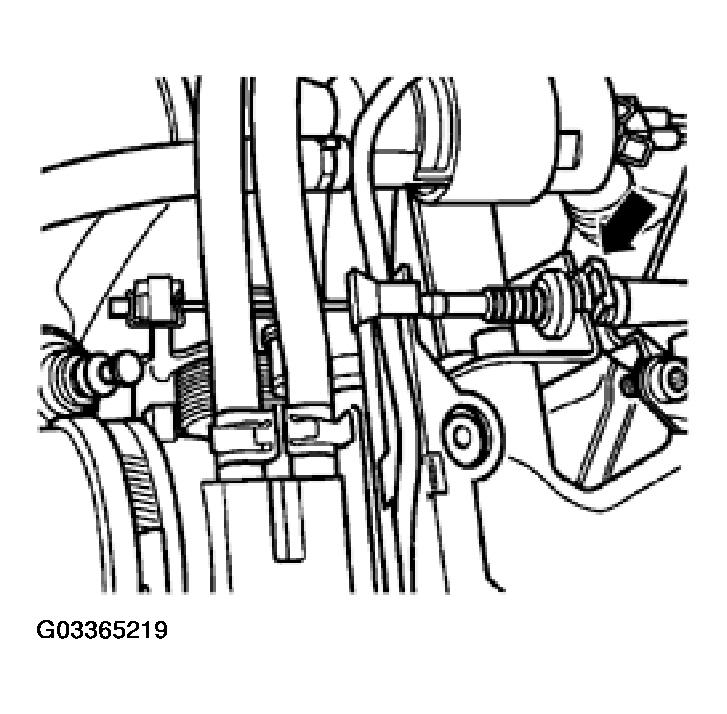

Fig 2: Adjusting Accelerator Pedal Cable By Moving Retainer Clip

Vehicles with automatic transmission:

Place spacer -1- between accelerator pedal -2- and stop -3-, and hold accelerator pedal in this position.
- Dimension -a- = 15 mm (0.59 in.)

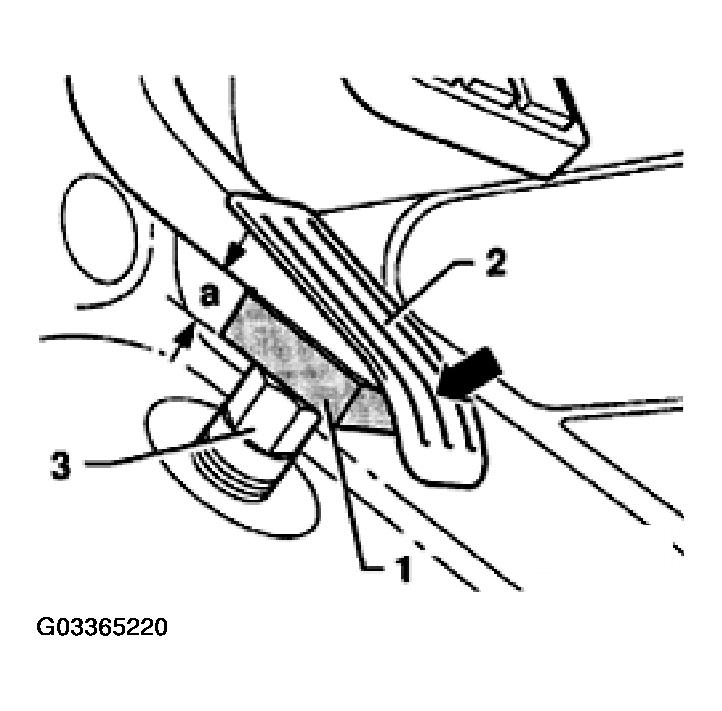

Fig 3: Placing Spacer Between Accelerator Pedal And Stop
Fully open throttle valve (Wide Open Throttle) by pulling on outer cable. Fasten in this position with retainer clip -arrow-.

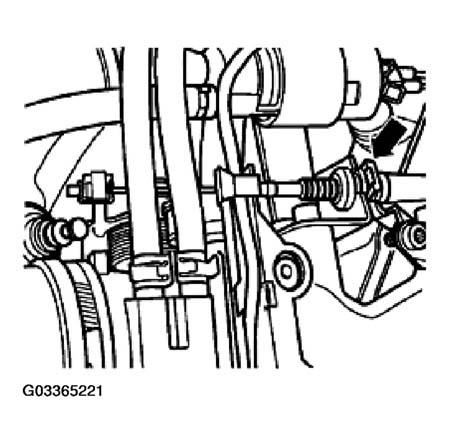

Fig 4: Adjusting Accelerator Pedal Cable By Moving Retainer Clip
Release accelerator pedal.
Disconnect 2-pin connector from kick down switch -F8- in engine compartment (on the bulkhead).
Connect hand multimeter (Fluke 83 or equivalent) to kick down switch -F8- using cables from VAG 1594 adapter kit.
Check resistance at switch.
- Resistance value: (NO continuity)

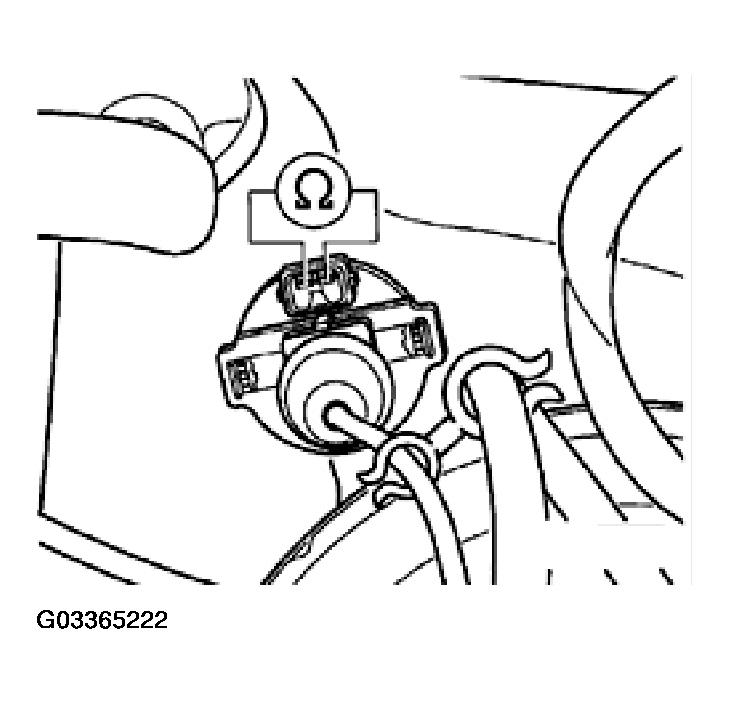

Fig 5: Checking Resistance At Kick-Down Switch (Automatic Transmission)
Slowly move accelerator pedal in direction of Wide Open Throttle.

Shortly after the kick-down pressure point:

Resistance must drop to 0 (continuity)
Accelerator pedal must be just off stop
