Front brake pads, removing and installing (Girling caliper): Removing

Separate connector for brake pad wear indicator.

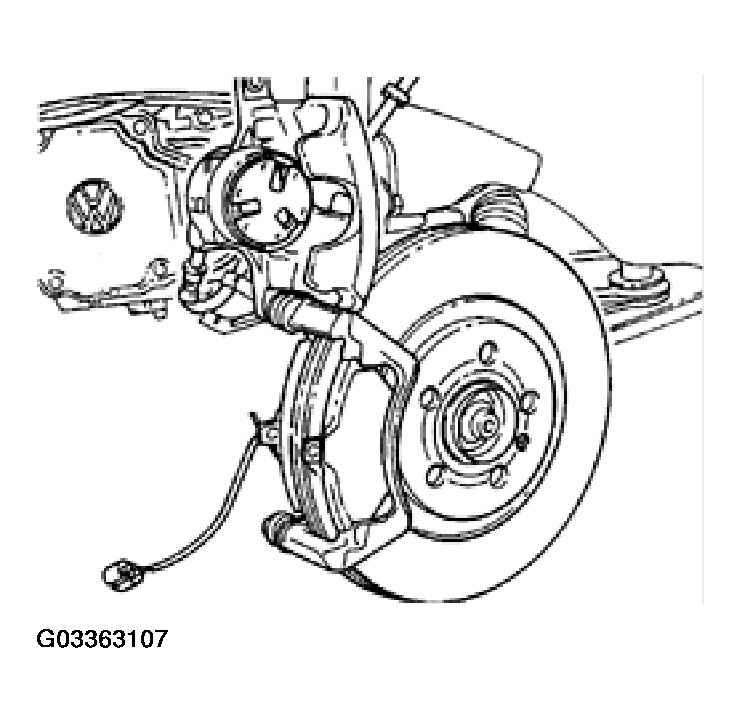

Fig 1: Separating Connector For Brake Pad Wear Indicator (Girling Caliper)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove lower caliper to guide pin mounting bolt (hold guide pin while loosening).
Swing brake caliper upward.
Remove brake pads.

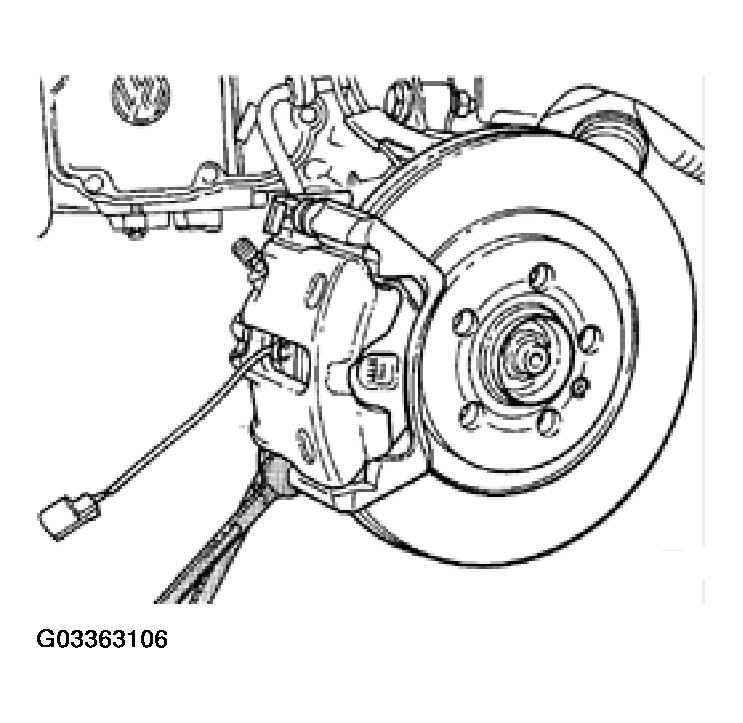

Fig 2: Removing Brake Pads (Girling Caliper)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

CAUTION:

Do not allow the caliper to hang by the brake hose. The unsupported weight can stretch and damage the hose.
Do not disconnect the brake hose from the caliper when removing brake pads.
