Revised brake caliper

From 10.92 a revised brake caliper has been installed on the rear axle.

The brake caliper can be identified by the bolted-on parking brake cable securing point -A-. The previous version of the brake caliper has the parking brake securing point cast directly to the caliper.

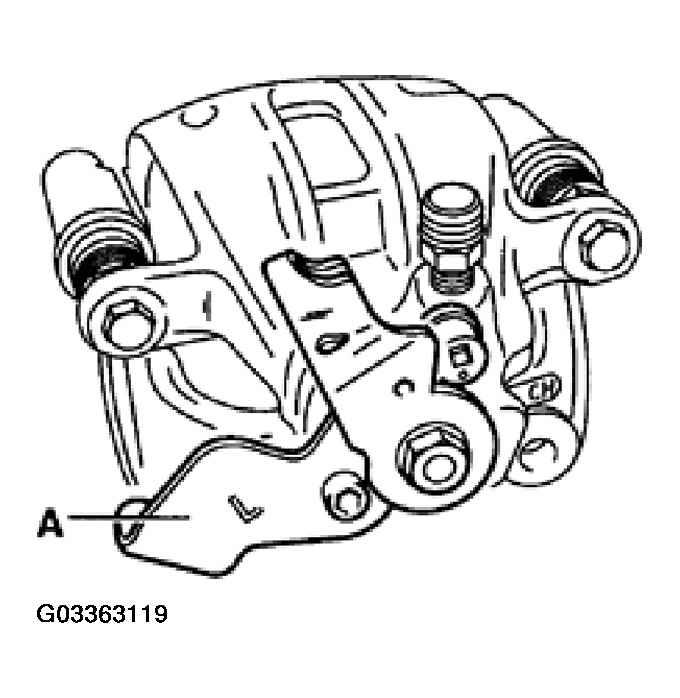

Fig 1: Identifying Revised Rear Brake Caliper (From 10.92)
G03363119Courtesy of VOLKSWAGEN OF AMERICA, INC.
