Installation position of ring cover

• Drive on cover ring using tube VW 519.

Dimension -a- = 9.5 mm (0.374 in.)

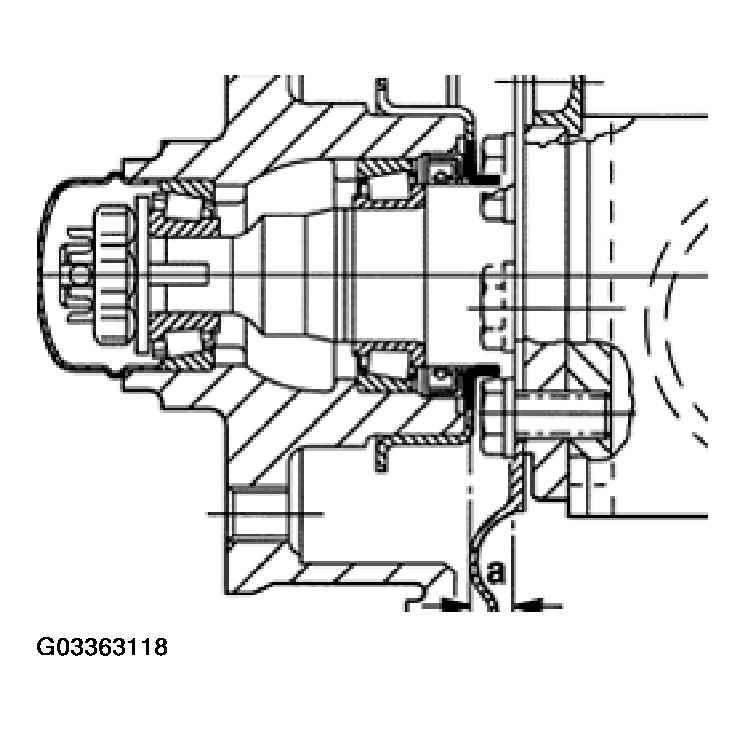

Fig 1: Identifying Installation Position Of Ring Cover (Rear Brake)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
