Modifying wedge VAG 1474/5

Reshape wedge point size in area -a-.
Width -b- = 6 mm (1/4 in.)
Reshape wedge point to length -c-.
Length -c- = 10 mm (3/8 in.)
Remove burrs from point of modified wedge.

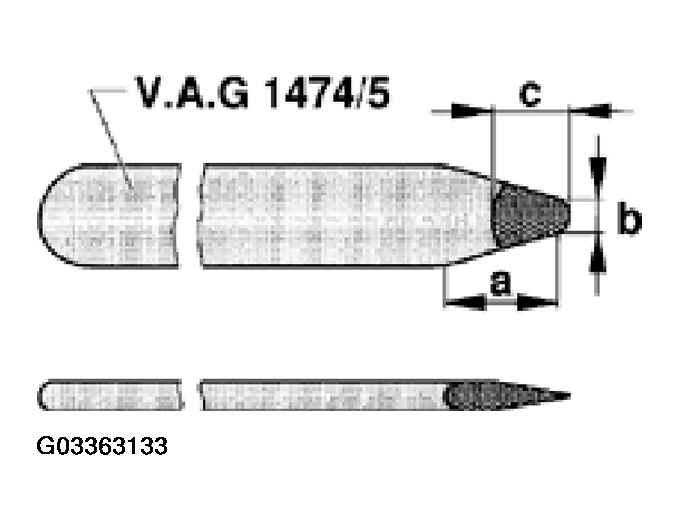

Fig 1: Identifying Modified Wedge

G03363133

Courtesy of VOLKSWAGEN OF AMERICA, INC.
