Releasing brake shoe adjustment
Releasing brake shoe adjustment
Insert screwdriver through wheel bolt hole in brake drum and push adjusting wedge upward to back shoes away from drum.

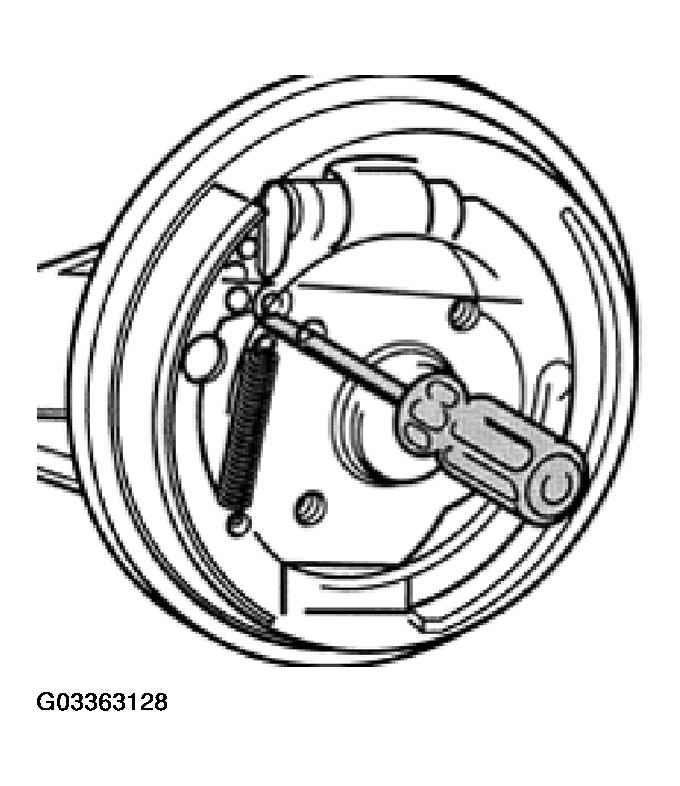

Fig 1: Releasing Brake Shoe Adjustment
Courtesy of VOLKSWAGEN OF AMERICA, INC.
