Rear disc brake pads, removing and installing: Removing

CAUTION: If the brake pads are to be reused, mark their installed positions before removal. Re-install in their original positions to avoid uneven braking.

Remove wheels.
Disconnect parking brake cable from brake caliper.

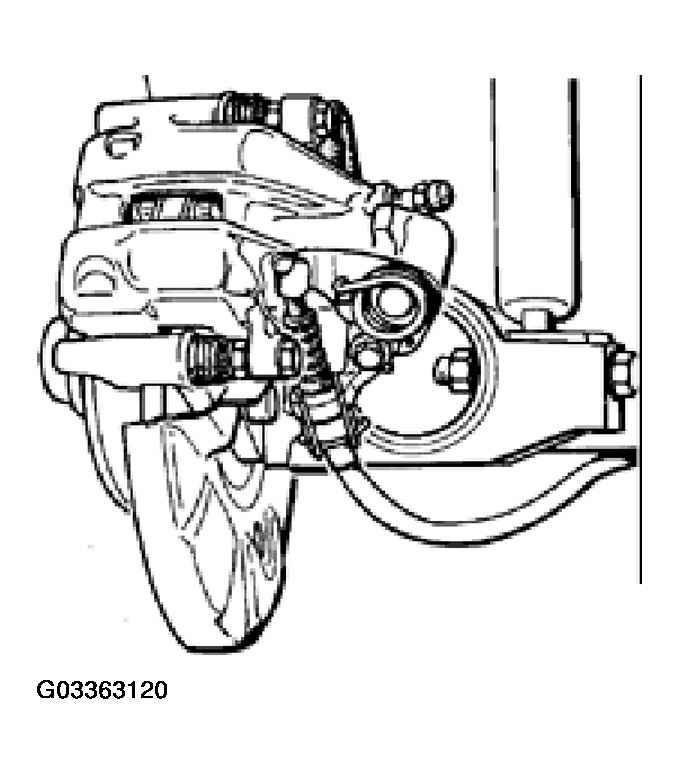

Fig 1: Disconnecting Parking Brake Cable From Rear Brake Caliper
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove brake caliper and brake pads.

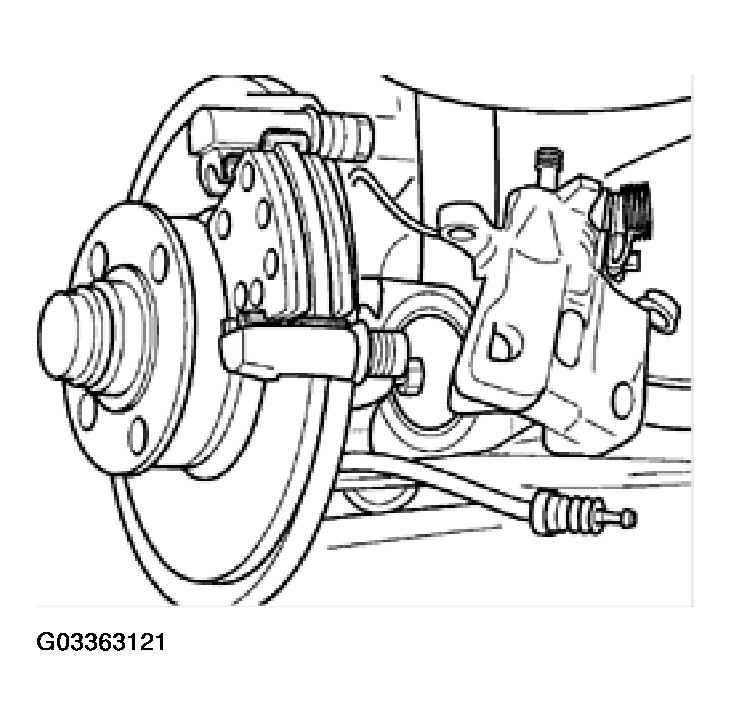

Fig 2: Removing Rear Brake Caliper And Brake Pads

Courtesy of VOLKSWAGEN OF AMERICA, INC.

CAUTION:

Do not allow caliper to hang by brake hose. The unsupported weight can stretch and damage the hose.
Do not disconnect the brake hose from the caliper when removing brake pads.

Clean brake caliper and brake carrier.

Brake pad bonding surfaces must be free of adhesive and grease residue.
