Parking brake lever, assembly

The following list pertains to Fig 1.

1. Parking brake lever
   • Different version for rear drum and rear disc brakes
   • Before removal, remove center console: see INSTRUMENT PANEL, REMOVING .
2. Hand grip
   • Pull down locating tab under hand grip and pull forward to remove
3. Adjusting nut

   Adjusting parking brake

   • Vehicles with drum brakes, see PARKING BRAKE, ADJUSTING
   • Vehicles with disc brakes, see PARKING BRAKE, ADJUSTING
4. Lock nut
   • To lock adjusting nut -3- in position
5. Compensator
6. Parking brake lever trim
   • First pull off hand grip -2- then pull trim forward
7. Hex nut
8. Parking brake cable
   • Different versions for rear drum and rear disc brakes

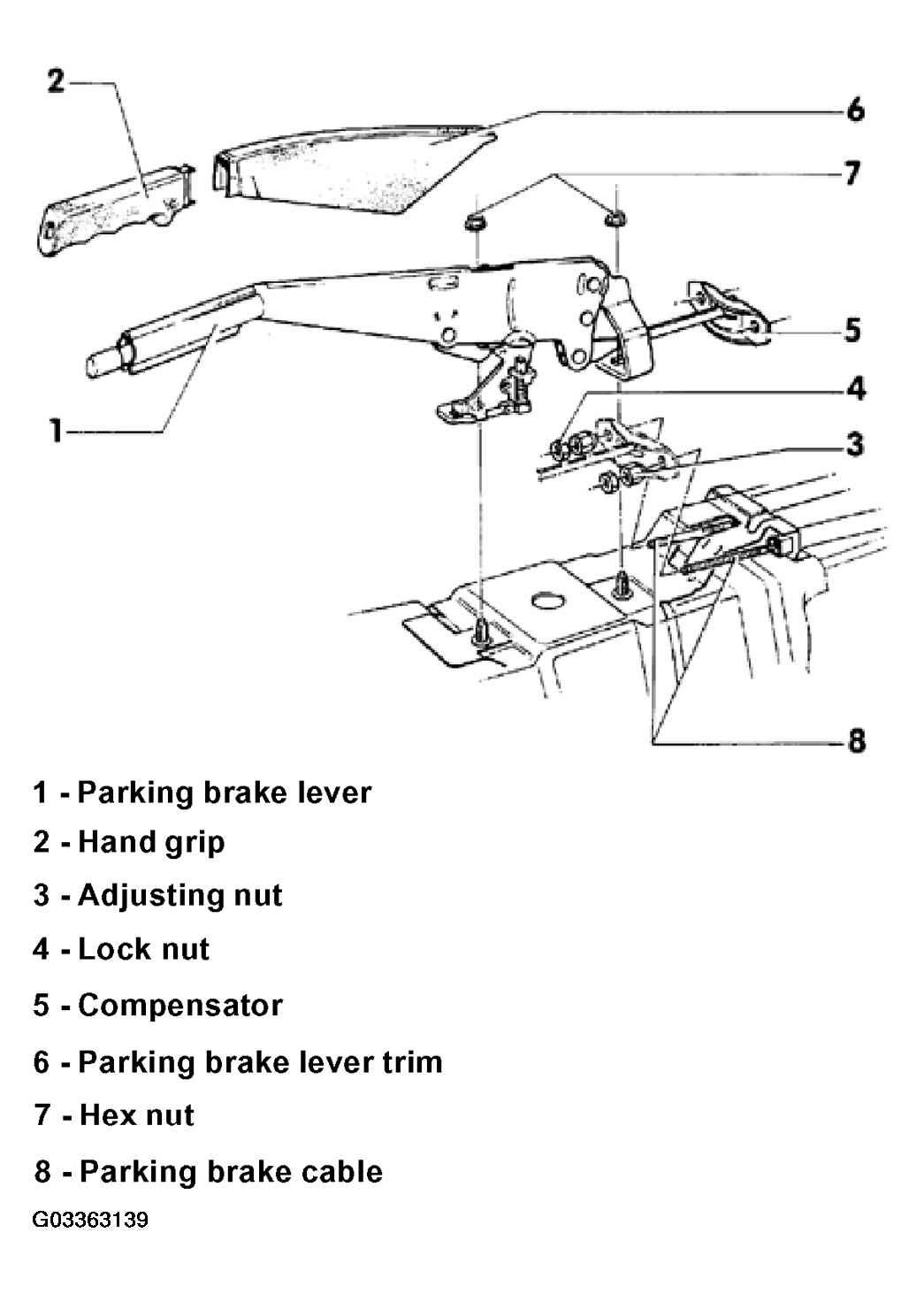

Fig 1: Exploded View Of Parking Brake Lever
Courtesy of VOLKSWAGEN OF AMERICA, INC.
