Front brakes, servicing (Girling caliper)
WARNING:
- Do not re-use fasteners that are worn or deformed in normal use.
- Some fasteners are designed to be used only once, and are unreliable and may fail if reused. This includes, but is not limited to, nuts, bolts, washers, circlips and cotter pins. Always follow recommendations in this manual-replace these fasteners with new parts where indicated, and any other time it is deemed necessary by inspection.
CAUTION:
After installing brake pads, depress the brake pedal firmly several times to seat the pads in their normal operating position.
NOTE:
Wheel bolt tightening torque: 110 N.m (81 ft lb).

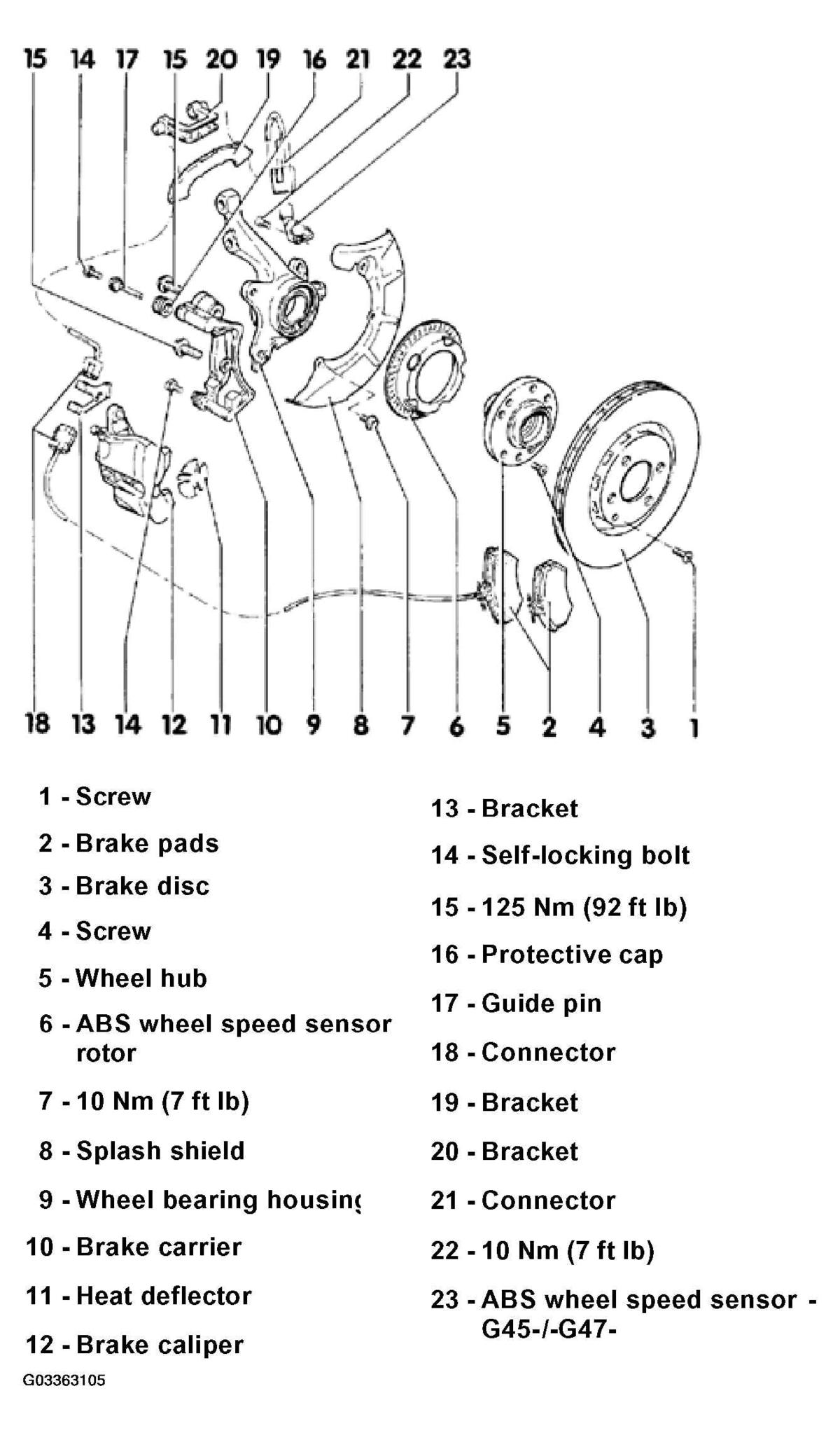

The following list pertains to Fig 1.
- Screw
- Brake pads
- With wear pad indicator
- Always replace both pairs at the same time
- Removing and installing, see FRONT BRAKE PADS, REMOVING AND INSTALLING (GIRLING CALIPER)
- Thickness: 14 mm (0.551 in.)
- Wear limit: 7 mm (0.276 in.) including backing plate
- Brake disc
- Removing: first remove brake caliper
Ventilated brake disc (with 4-cyl. engine):
- Diameter: 256 mm (10.08 in.)
- Thickness: 20 mm (0.787 in.)
- Wear limit: 18 mm (0.709 in.)
Ventilated brake disc (with VR6 engine):
- Diameter: 280 mm (11.02 in.)
- Thickness: 22 mm (0.866 in.)
- Wear limit: 20 mm (0.787 in.)
- Removing: first remove brake caliper
- Screw
- Wheel hub
- Pressing out, see PRESSING WHEEL HUB OUT OF WHEEL BEARING HOUSING
- Pressing in, see PRESSING WHEEL HUB INTO WHEEL BEARING
- ABS wheel speed sensor rotor
- For ABS wheel speed sensor
- 10 N.m (7 ft lb)
- Splash shield
- Wheel bearing housing
- Brake carrier
- Girling caliper shown
- Replacement part comes assembled with grease
- Use repair kit if protective caps are damaged
- Lubricate guide bolts with grease supplied in repair kit
- Heat deflector
- Insert in piston
- Brake caliper CAUTION:
- Do not disconnect the brake hose from the caliper when replacing brake pads.
- Do not allow the caliper to hang by the brake hose. The unsupported weight can stretch and damage the hose.
- Bracket
- Self-locking bolt
- Always replace
- 35 N.m (26 ft lb)
- 125 N.m (92 ft lb)
- Protective cap
- Guide pin
- Connector
- For brake pad wear indicator
- Bracket
- Bracket
- Connector
- For ABS wheel speed sensor
- 10 N.m (7 ft lb)
- ABS wheel speed sensor - G45-/-G47-
- Install with lubricating paste, Part No. G 000 650
