Front brake pads, removing and installing (Girling caliper): Installing

WARNING: Brake fluid is poisonous and must never be extracted by mouth through a hose.

CAUTION:

Extract part of the brake fluid from the brake fluid reservoir before pushing back the pistons.
Use the bleeder bottle or a plastic bottle, which is used only for brake fluid, for extracting the fluid.
If this is not done, particularly if the brake fluid has been topped up in the meantime, brake fluid may flow out and cause damage.

Press piston into caliper.

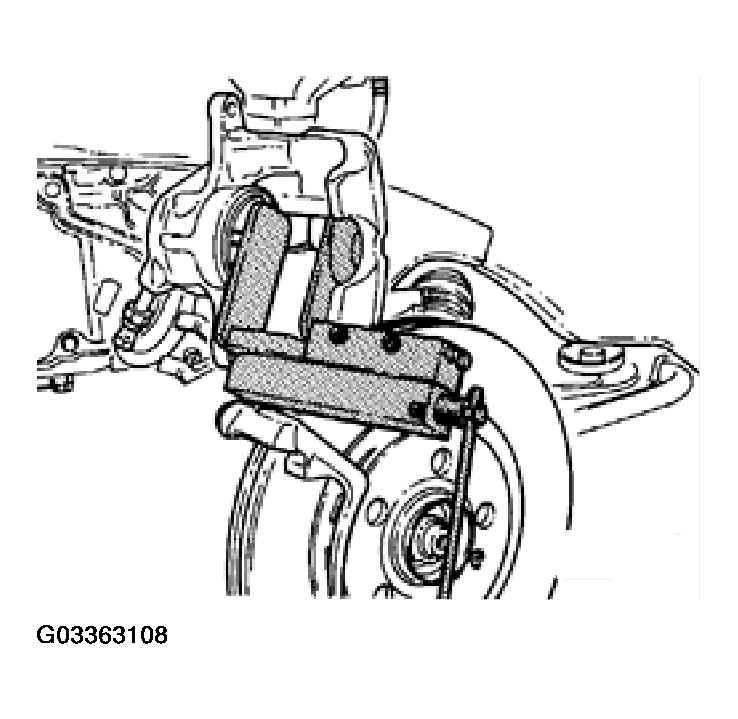

Fig 1: Pressing Piston Into Caliper (Girling Caliper)

G03363108

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install brake pads and heat shield.
Swing brake caliper down and install new lower bolt (supplied in repair kit).
Tighten caliper to guide pin mounting bolts.
Tightening torque: 35 N.m (26 ft lb)
Depress brake pedal firmly several times to seat brake pads in normal operating position.
