Rear seat backrest cover and padding, removing and installing (split seat)
NOTE:

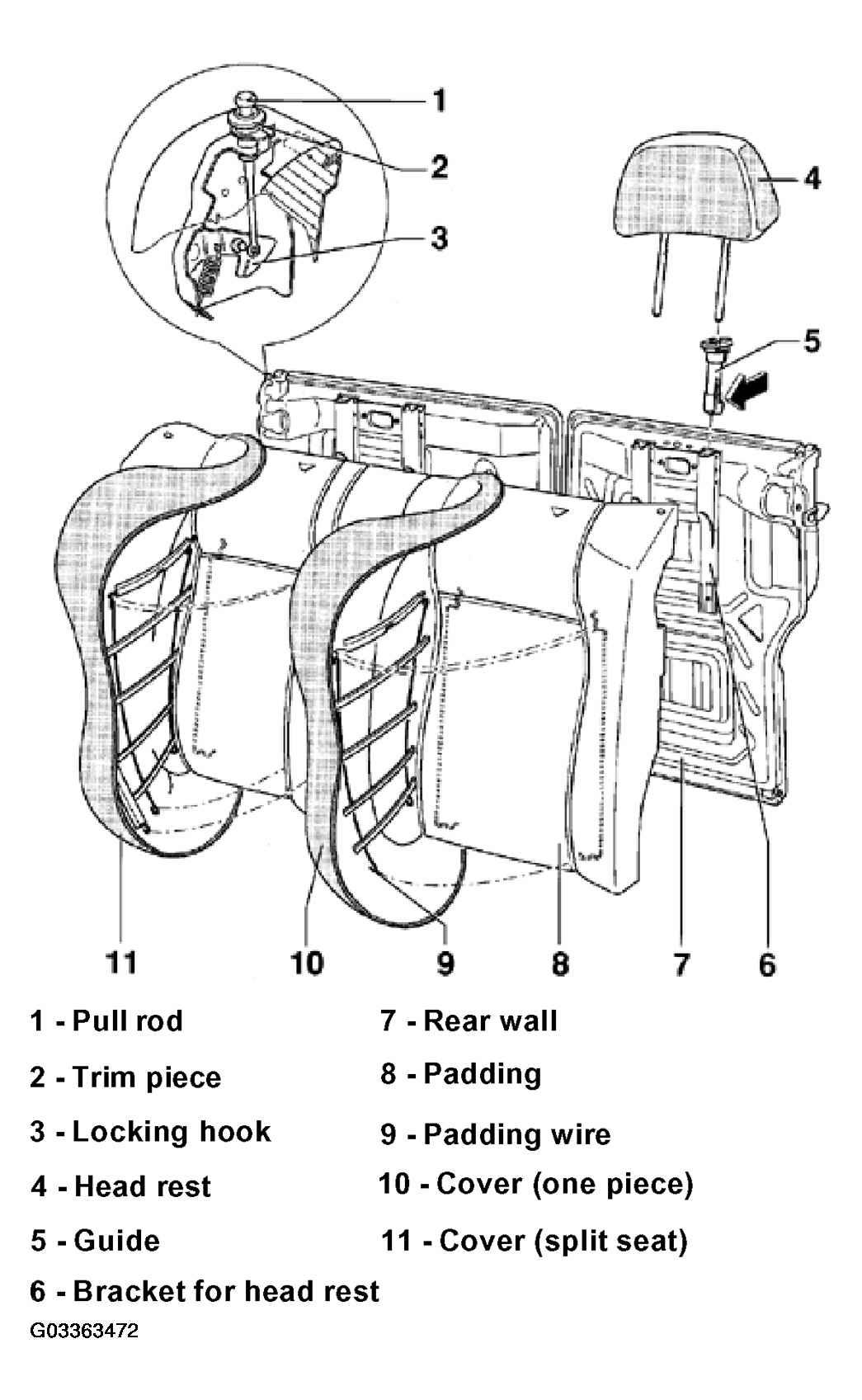

The following list refers to Fig 1
.
- - Pull rod
- - Trim piece
- - Locking hook
- Lock, removing and installing (Jetta). See SEAT BACK LOCK, REMOVING AND INSTALLING (JETTA) .
- - Head rest
- To remove, press button on guide and pull head rest out
- - Guide
- To remove, loosen cover from back wall, grip under padding and bracket for head rest, press tab on guide (arrow) and pull guide out.
- - Bracket for head rest
- - Rear wall
- - Padding
- - Padding wire
- Hooked into padding
- Remove and install using VAG1636
- - Cover (one piece)
- Sewn-in cover clamping profile fastened on rear wall flange
- - Cover (split seat)
- Sewn-in cover clamping profile fastened on rear wall flange
