Rear seat bench cover and padding, removing and installing (split seat)
NOTE:

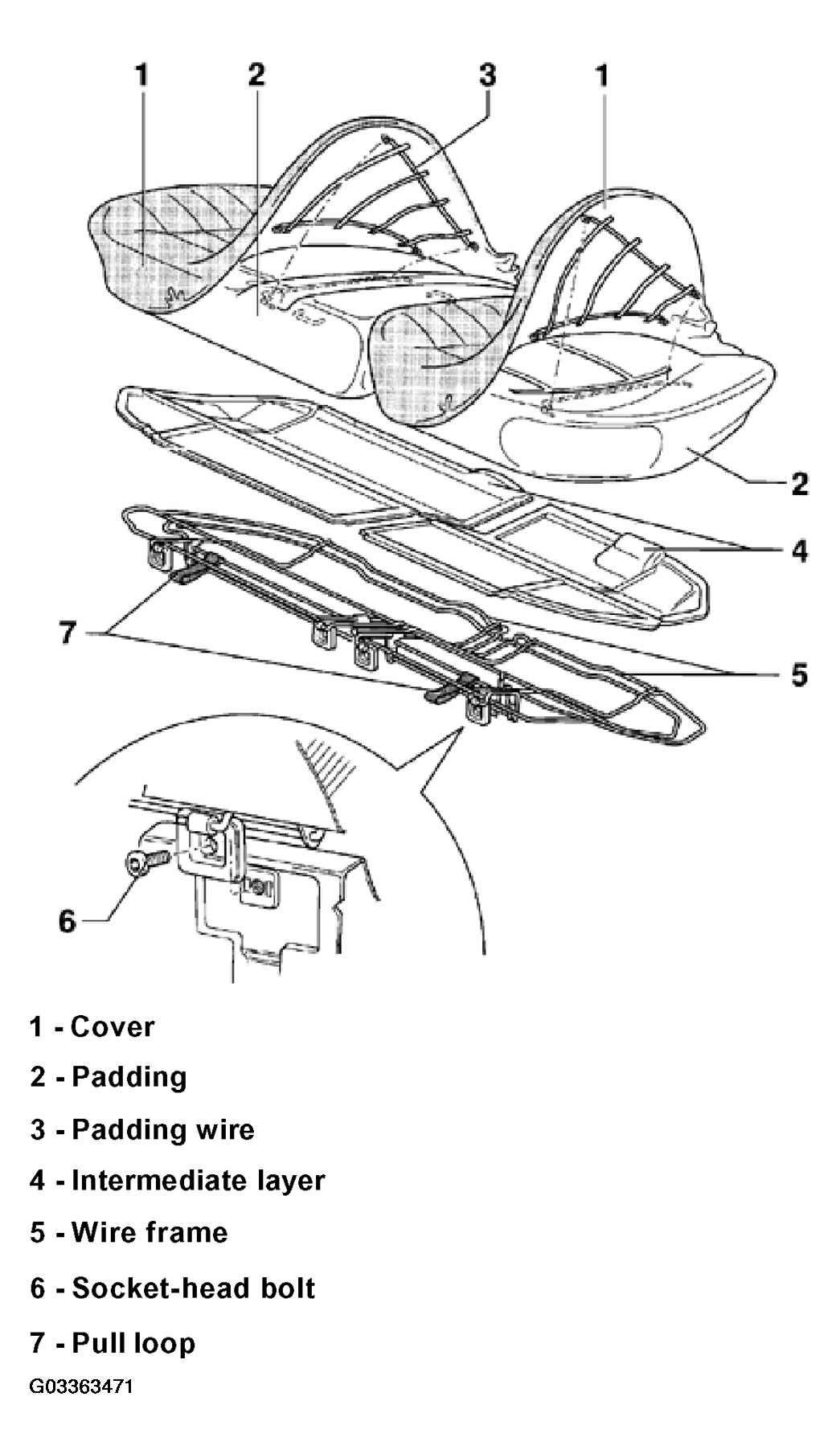

The following list refers to Fig 1
.
- - Cover
- With clamping profile sewn in
Removing:
- Remove clamping profile from wire frame.
- Disconnect padding wires.
- - Padding
- - Padding wire
- Hooked into padding
- Remove and install using VAG1636
- - Intermediate layer
- - Wire frame
- - Socket-head bolt
- - Pull loop
