Rear seat covers and padding, removing and installing (one-piece): Notes
NOTE:

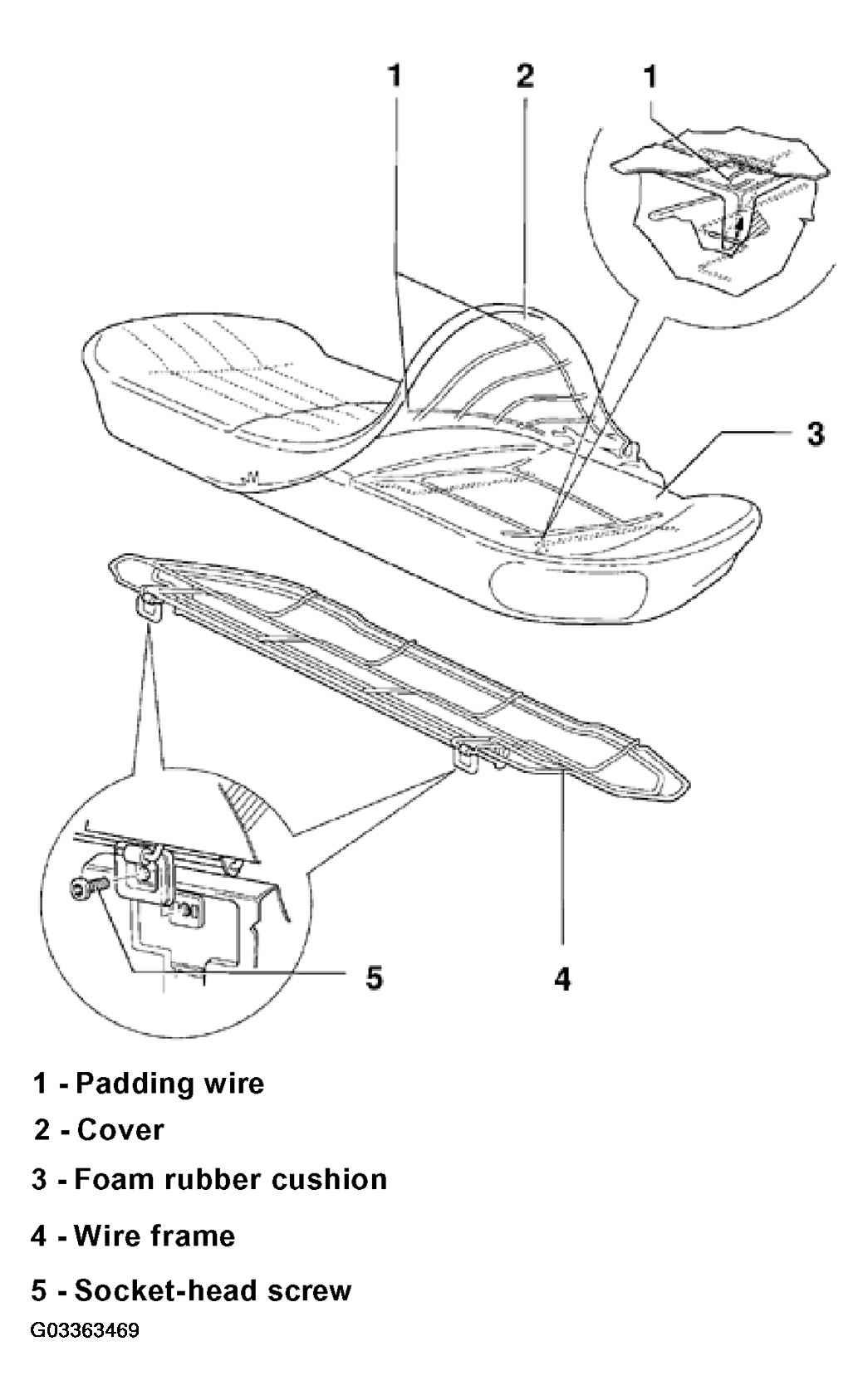

The following list refers to Fig 1
.
- - Padding wire
- Hooked into padding
- Remove and install with VAG1636
- - Cover
Removing:
- Pry cover with sewn-in piping off of seat base flange.
- Disconnect padding wires - 1 - from foam rubber cushion using VAG1636.
- - Foam rubber cushion
- - Wire frame
- - Socket-head screw
