Front seat backrest cover and padding, removing and installing
NOTE:

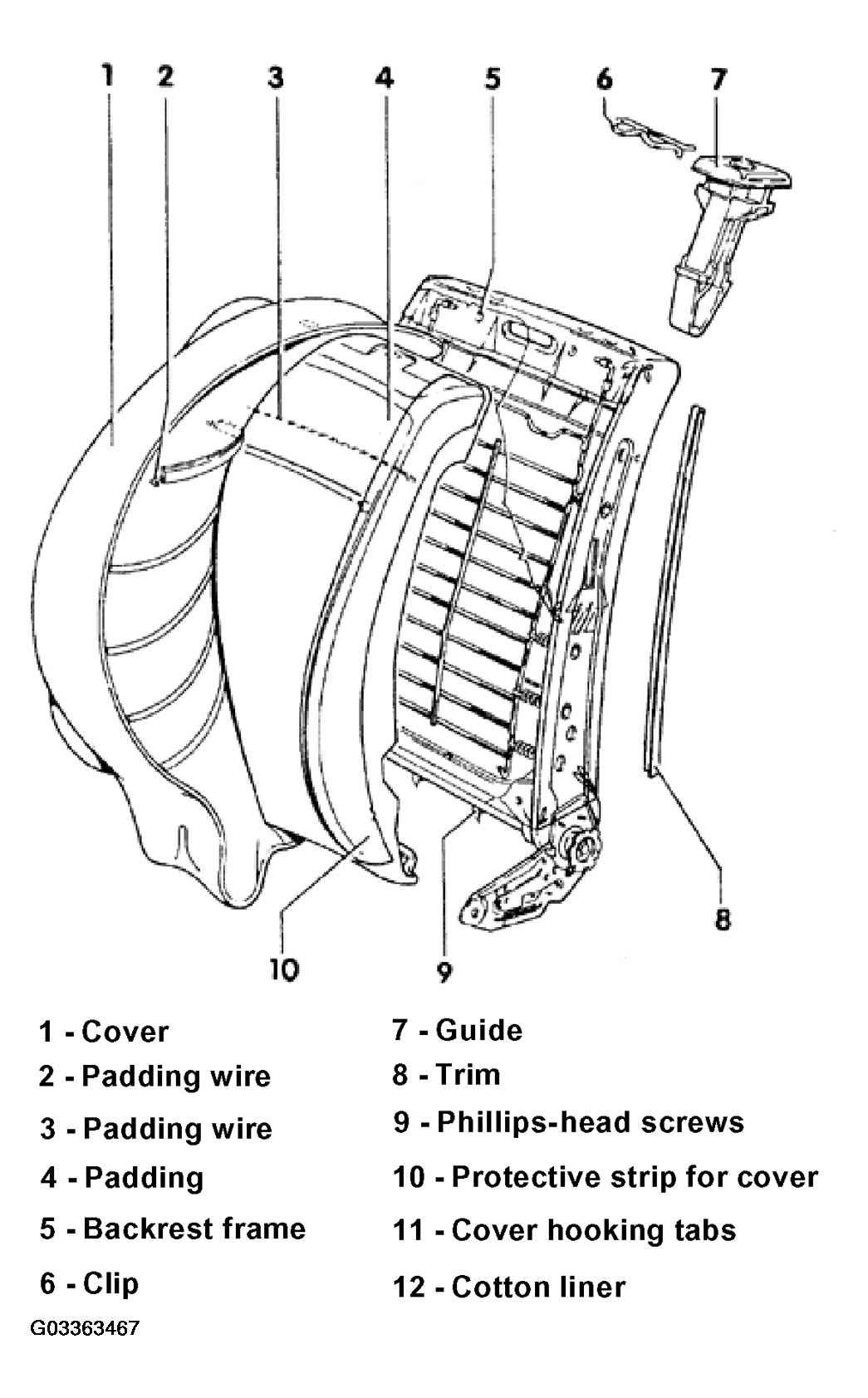

The following list refers to Fig 1
.
- - Cover
Removing:
- Removing backrest. See FRONT SEAT BACKREST, REMOVING AND INSTALLING .
- Slide cover upward.
- Unhook padding wire - 2 -.
- Remove guides - 7 - and take off cover.
- - Padding wire
- Connected in padding; disconnect and connect using VAG1636 awl.
- - Padding wire
- GL only
- - Padding
- - Backrest frame
- - Clip
- - Guide
- Removing: push up cover, squeeze ends of guide together and pull out
- - Trim
- Taxi only
- - Phillips-head screws
- - Protective strip for cover
- CL only
- - Cover hooking tabs
- Not identified in illustration
- - Cotton liner
- Not identified in illustration
