Fuel Gauge & Fuel Level Sensor Troubleshooting (A3 Platform)
>>
Fuel Gauge (G1) Checking
>>
Troubleshooting Fuel Gauge
Troubleshooting Fuel Gauge

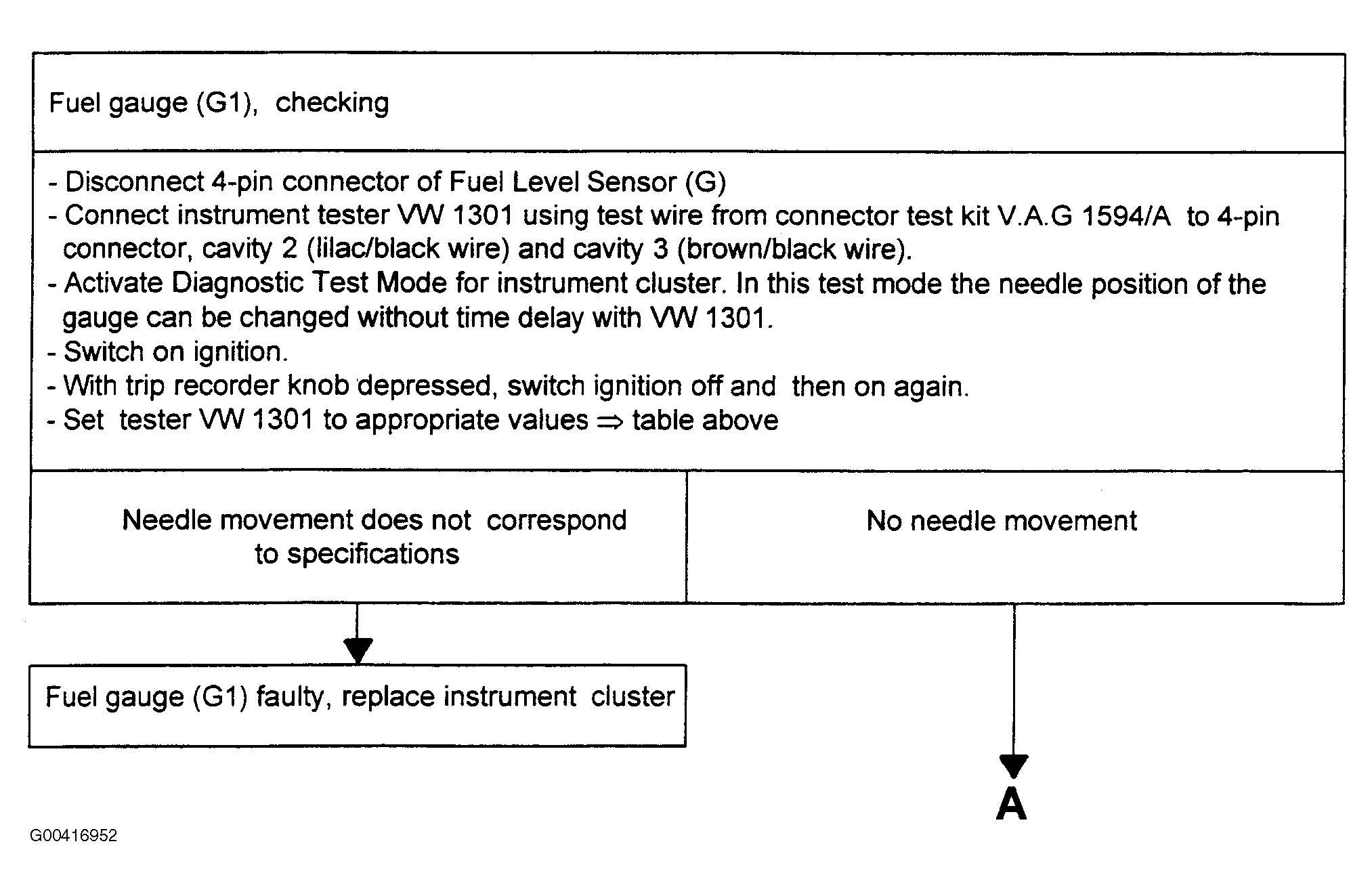

Fig 1: Troubleshooting Fuel Gauge (1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

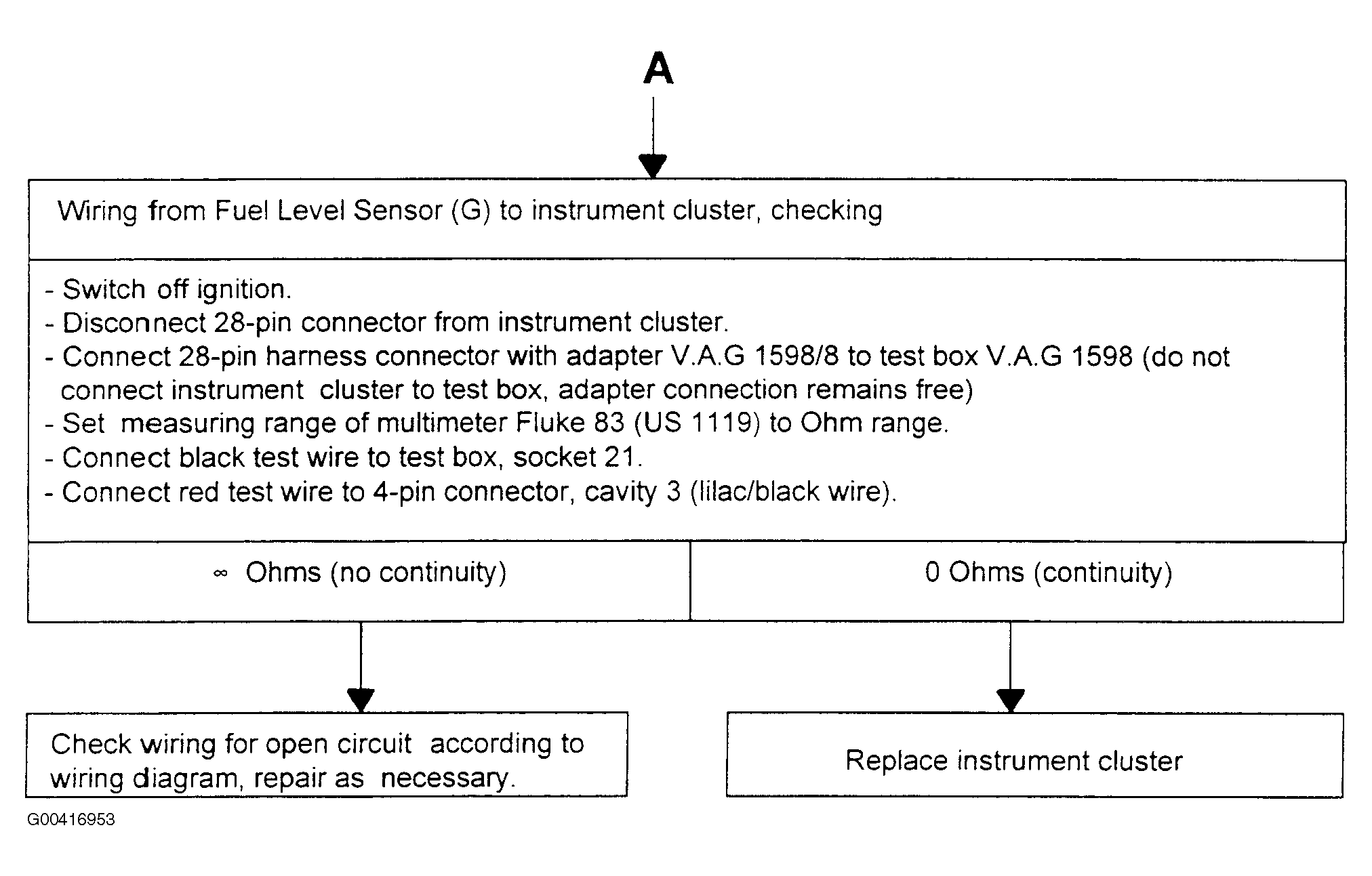

Fig 2: Troubleshooting Fuel Gauge (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
