Test Values

CAUTION: Manufacturer specifies two separate test values without a description to differentiate between either set. Use caution when matching values.

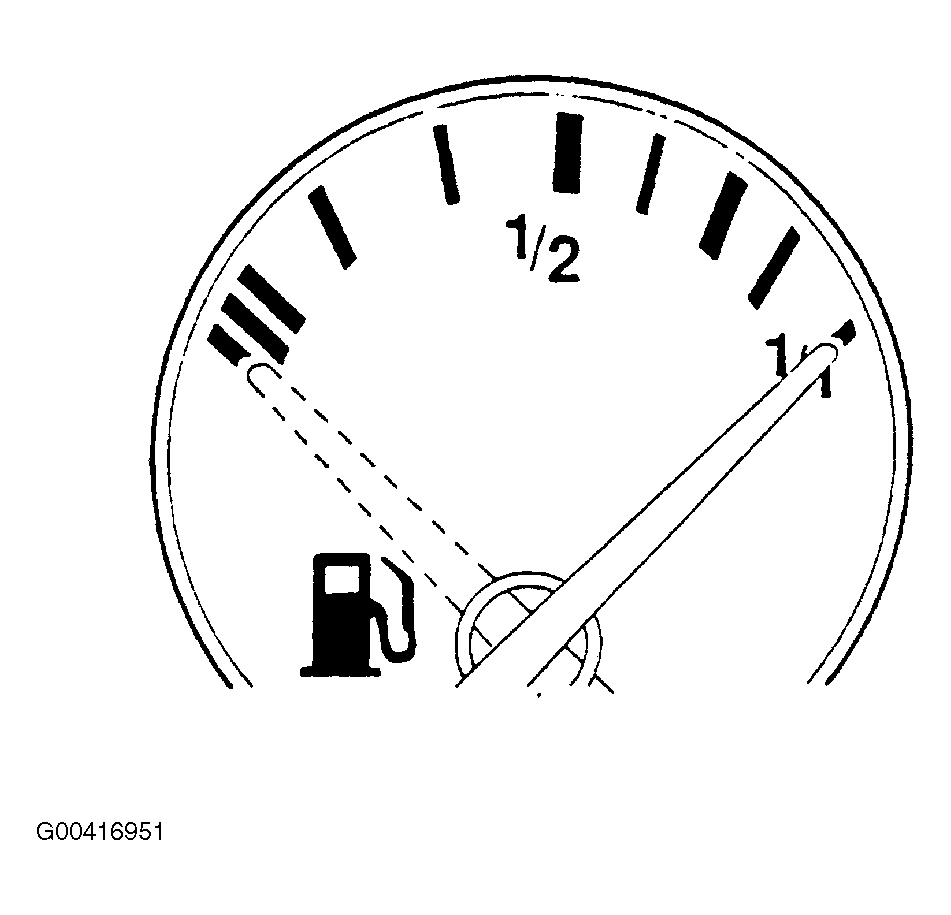

Fig 1: Identifying Fuel Gauge & Needle

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Test Values (Set A)

Tester Value⁽¹⁾

Definition

Fuel gauge needle reads full = 1/1

160

Fuel gauge needle reads 1/2

570

Fuel gauge needle reads empty (last line at left end of scale)

⁽¹⁾	Permissible deviation: One needle width!

Test Values (Set B)

Tester Value⁽¹⁾

Definition

Fuel gauge needle points to scale line for fulll = 1/1

160

Fuel gauge needle points to scale line for half full = 1/2

358

Fuel gauge needle points to area of scale field for reserve

546

Fuel gauge needle points to area of scale field for empty

⁽¹⁾	Permissible deviation: One needle width. If you get these values, check fuel gauge sender (G).
