Rear axle for Golf and Jetta, Up To 07.94
Identification:
NOTE:

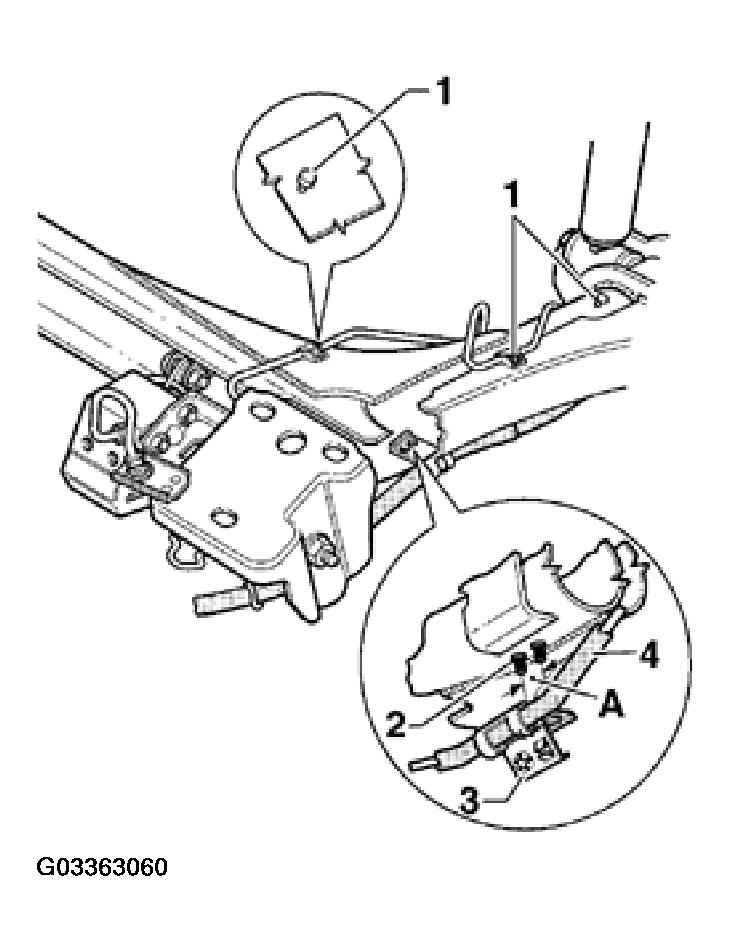

The following list refers to items in Fig 1
.
- - "T" pins for brake line and ABS cable channel retainer
- - Grooved pins for parking brake cable clip
- Dimension -A- = 15 mm (approx. 5/8 in.)
- - Clip for parking brake cable with protective covering
- - Parking brake cable with protective covering
After current stock of rear axles has been exhausted, only rear axles with welded on threaded studs will be delivered as replacement parts. For vehicles up to 07.94 different parts must then be used. SeeREPLACEMENT PARTS FOR GOLF AND JETTA, 07.94 .
