Checking control module version
- Switch ignition on.
- Press button -1- for "Rapid data transfer" operating mode.
Indicated on display:
Fig 1: Identifying VAG 1551 Scan Tool Display (Checking Control Module Version, From 09.94 & Up) (1 Of 10)
- Press buttons -1- and -5- to insert address word "Airbag".
Indicated on display:
Fig 2: Identifying VAG 1551 Scan Tool Display (Checking Control Module Version, From 09.94 & Up) (2 Of 10)
- Press -Q- button to confirm input.
Indicated on display: (This is an example. For actual control model version check with your Parts Department):

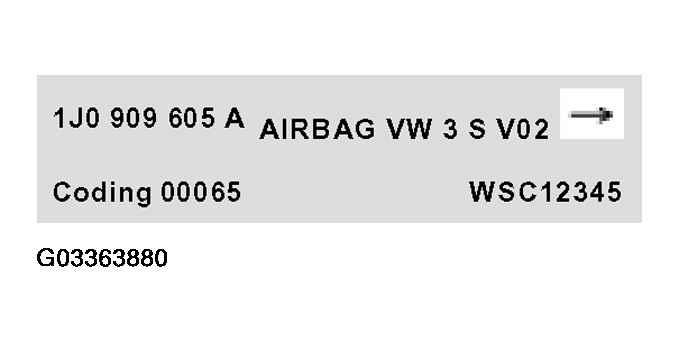

Fig 3: Identifying VAG 1551 Scan Tool Display (Checking Control Module Version, From 09.94 & Up) (3 Of 10)
- Top line of display: Part No. of control module System designation (AIRBAG VW3) Version number
- Bottom line of display: Code number (Dealer number automatically stored in airbag control module when entering the system)
- Press--> button.
Indicated on display:
Fig 4: Identifying VAG 1551 Scan Tool Display (Checking Control Module Version, From 09.94 & Up) (4 Of 10)
NOTE:
- If any of the listed messages is displayed, the possible causes of the malfunction can be printed by pressing the HELP-button.
- The ignition must be switched on.
- Malfunctions have occurred at the start or during the program (external interference?).
- Check VAG 1551/3 adapter harness, voltage supply (B+) and Ground (GND) connections.
- After repairing possible causes of malfunction, press buttons -1- and -5- to insert address word "Airbag".
- Press -Q- button to confirm input.
Indicated on display (after entering address word 15)
Fig 9: Identifying VAG 1551 Scan Tool Display (Checking Control Module Version, From 09.94 & Up) (9 Of 10)
Then indicated on display:
Fig 10: Identifying VAG 1551 Scan Tool Display (Checking Control Module Version, From 09.94 & Up) (10 Of 10)
Indicated on display (This is an example. For actual airbag control module version see your Parts Department)
