High-range speaker (domed tweeter) in front doors, removing

WARNING: This page is about a different variant/trim than selected.

The high-range speaker is integrated into the forward window trim (by the outside mirror mounting) on both front doors. The trim and speaker are constructed as a single unit and cannot be separated.

Removing

Remove front door panel. Refer to 70 - INTERIOR TRIM .
Disconnect electrical harness connection to speaker.

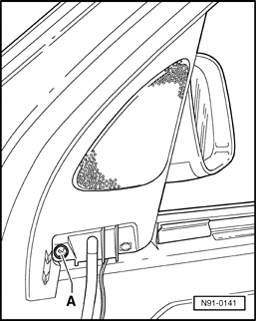

Fig 1: Identifying Trim/Speaker Screw

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screw -A-
Carefully push trim upward and remove trim/speaker.

CAUTION:

To avoid damage, do not pull or pry out window trim. Only push upwards to disengage the inner locating tab.
