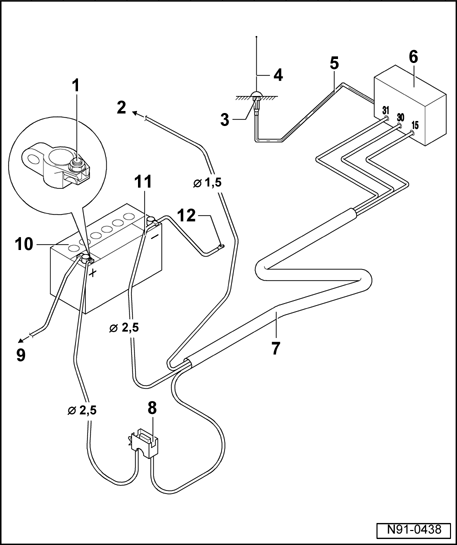

Battery, transmitter/receiver unit - fuse and wiring harness, overview

1 - Positive connection

• Red wire with suitable connection.

2 - To terminal 15a

• Connection to terminal 15a: Refer to Wiring Diagrams and Component Locations.
• Ensure wire is protected by fuse.
• Fuse protection max. 15A

3 - Antenna Ground (GND)

• Ensure correct Ground (GND) connection to body.
• The antenna location must be treated with suitable corrosion protection.

4 - Transmitter/receiver antenna

• Fitting locations: Refer to table Transmitted output and antenna installation locations  .

5 - Shielded antenna wire

• Wire with coaxial connector

6 - Telephone or two-way radio transmitter/receiver unit

7 - Wiring harness

• Voltage supply positive via red wire 2.5 mm cross section.
• Voltage supply negative via brown wire 2.5 mm cross section.
• If necessary, wire to terminal 15a via black wire 1.5 mm cross section.

8 - Fuse holder

• Install next to battery.

9 - To Starter

10 - Battery

• Located in the engine compartment at the front left corner.

11 - Negative ( - ) wire

12 - Body Ground (GND)
