Radio system antenna, assembly

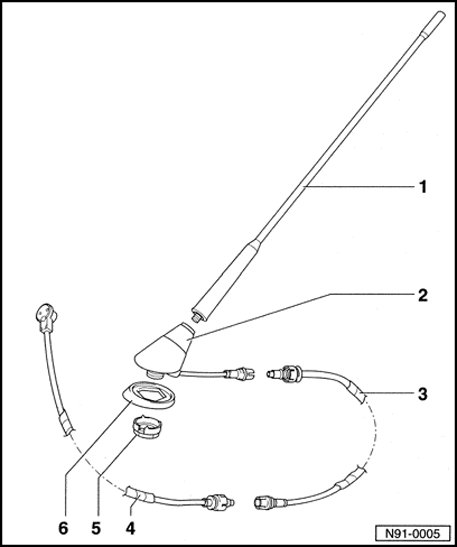

Fig 1: Exploded View Of Radio System Antenna

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Antenna rod

2 - Antenna base

• Roof antenna booster is located in antenna base.
• Jetta Wagon, Golf & GTI - removing and installing. Refer to Antenna - Jetta Wagon, Golf & GTI, removing and installing  .
• Jetta Sedan - removing and installing. Refer to Antenna - Jetta Sedan, removing and installing  .

3 - Antenna cable

• From roof antenna to front of center console

4 - Antenna cable

• From center console to radio unit

5 - Hex nut M14 with serrated washer

• Serrated washer is attached to hex nut with a plastic ring.
• Apply contact grease to the inside of the roof in area of serrated washer.

6 - Seal
