GPS/Telematics system antenna, assembly

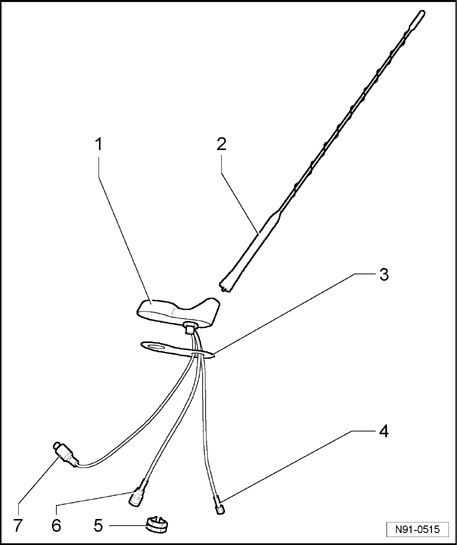

Fig 1: Exploded View Of GPS/Telematics System Antenna

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Antenna base

• Jetta Wagon, Golf & GTI - removing and installing. Refer to Antenna - Jetta Wagon, Golf & GTI, removing and installing  .
• Jetta Sedan - removing and installing. Refer to Antenna - Jetta Sedan, removing and installing  .

2 - Antenna mast

3 - Gasket

4 - Antenna connection - GPS

• Threaded

5 - Hex nut

6 - Antenna connection - Radio

• Plug
• Black

7 - Antenna connection - Telematics

• Plug
• Grey
