Fuse holder, removing and installing

Removing

• Disconnect battery. Refer to Battery with fastened fuse holder, disconnecting and reconnecting  .
• Carefully pry-off side cover from instrument panel (left).
• Remove driver's side instrument panel trim.

Refer to 70 - INTERIOR TRIM

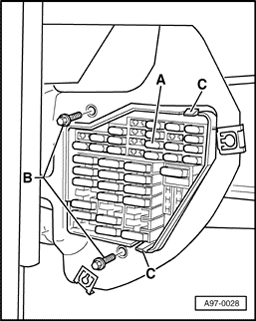

Fig 1: Identifying Fuse Holder, Screws & Locking Tab

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove screws -B- (2 Nm)
• Press locking tab -C- while doing pulling fuse holder -A- out inward.

Installing

Install in reverse order of removal, noting the following:

• Reconnect battery. Refer to Battery with fastened fuse holder, disconnecting and reconnecting  .
