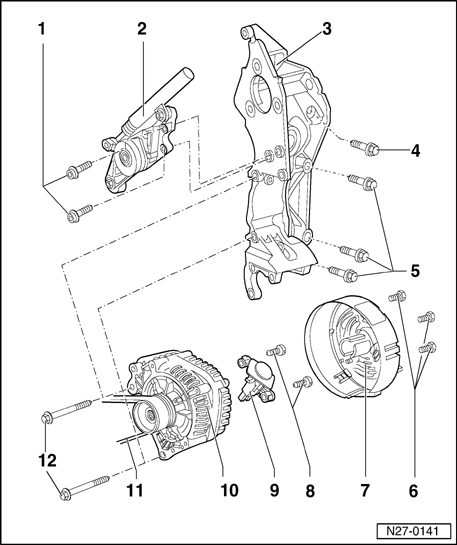

4-cylinder TDI engines with power steering through 04.99, assembly

1 - Hex bolts

• M8 x 45mm
• 25 Nm

2 - Tensioner

3 - Bracket

4 - Hex bolt

• M10 x 45mm
• 45 Nm

5 - Hex bolts

• M10 x 65mm
• 45 Nm

6 - Hex bolts

• M3 x 18mm

7 - Protective cap

8 - Screws

• M4 x 25mm

9 - Voltage Regulator (VR)

• Removing and installing. Refer to Item 6, 7 and 8 in 4-cylinder TDI engines with power steering through 04.99, assembly
• Checking carbon brushes. Refer to Generator (GEN) carbon brushes, checking

10 - Generator (GEN)

• Tightening torque B+ wire to generator. Refer to Generator (GEN) B+ & D+ connections, securing

11 - Ribbed belt

• Removing and installing. Refer to Ribbed belt, removing and installing
• Ribbed belt routing. Refer to Ribbed belt, routing

12 - Hex bolts

• M8 x 85mm
• 25 Nm
